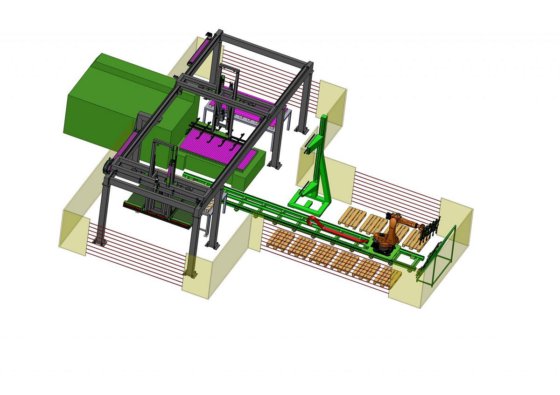

LASER LOADING AND UNLOADING CELL WITH SORTING in Modena, Emilia-Romagna, Italy
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Max. piece size
- 1500 x 3000 mm
- Max. thickness
- 5 mm
- Category
- Machine Tools equipment in Italy
- Subcategory
- Laser loading and unloading cells
- Listing ID
- 99592441
Description
STATION | STATION DESCRIPTION | QTY

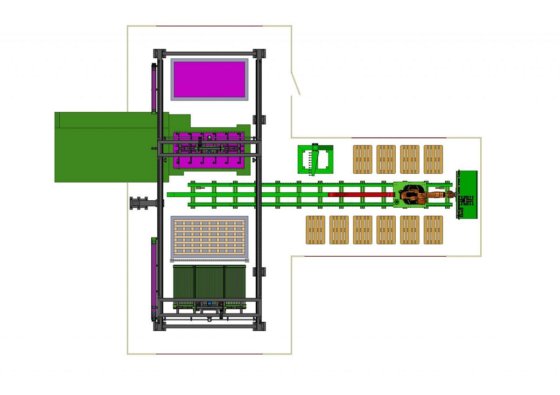

00 | Layout development, system design | 1
10 | Cartesian portal | 1
20 | Vertical wagons | 2
30 | Fork without belt | 1
40 | Blank sheet metal gripping system | 1
50 | Fixed loading and unloading benches | 2
100 | Electrical and pneumatic system | 1
110 | Protections | 1
120 | Subassembly assembly | 1
130 | Testing and Testing in Sistec | 1
ROBOT SECTION.
60 | Robot 90 kg, R=3100 mm, with 7th axis (L = 10 m) | 1
70 | Gripping system | 3
80 | Gripping system warehouse (5 places) | 1
90 | Tilting system | 1
00 | Software for sorting | 1
SUB-TOTAL, EX-WORKS
*OPTIONAL
50 | Motorized loading/unloading carts | 2
30 | Difference for fork with belt | 1
STATION | EXCLUSIONS
00 | Plant management programming
140 | Installation, wiring and startup
