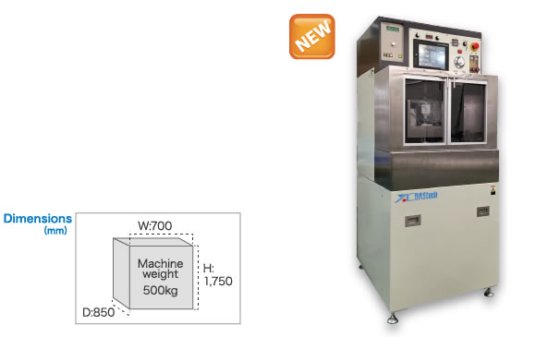

YAC DAStech DAR806 in Saitama, Japan
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Chuck table dimension (mm)
- 200x200
- X axis effective stroke minimum setting unit feed speed range axis drive system drive source
- (mm) (mm) (mm/sec); 200 (processable work width) 0.001 0.1～100 The precision ball screw is driven by the motor. AC servo motor
- Y axis effective stroke minimum setting unit feed speed range axis drive system drive source
- (mm) (mm) (mm/sec); 200 (processable work width) 0.001 0.1～100 The precision ball screw is driven by the motor. AC servo motor
- Z axis effective stroke minimum setting unit feed speed range axis drive system drive source
- (mm) (mm) (mm/sec); 100 0.001 0.005～20 The precision ball screw is driven by the motor. AC servo motor
- Workpiece chuck table chuck table design applicable frame vacuum source
- Porous chuck for tape-cutting 2-8-1 Ejector-type vacuum generator
- Spindle type oscillation frequency tolerance maximum rated motor power drill chuck method speed range blade size drill diameter
- (kHz) (W) (min-1); Mechanical spindle - 500 Clamp 3,000 - 15,000 Shank size φ6 Available range Φ1.0 – 10.0; Ultrasonic spindle 40 (use adjustment knob to fine-tune)
- Utility power source noise grounding power consumption air pressure air consumption
- (kVA) (MPa) (l/min（A.N.R）); AC 200 V within ±10%, 3-phase 50/60 Hz Less than 2000 V at pulse width 500 ns JIS third class grounding resistance 100 Ω or less 8 (machine) 0.55 80
- Main dimension
- (mm); 700 (W) x 850 (D) x 1,750 (H)
- Machine weight main body
- (kg); 500
- Maximum workpiece size
- 200 mm x 200 mm
- Category
- Processing equipment in Japan
- Subcategory
- Machinery
- Subcategory 2
- Core drill machines
- Subcategory 3
- Cutting machine lineup
- Listing ID
- 99529510
Description
Cutting Machine Lineup
Fully Automated Core Drill Machines
DAR806
Equipped with Ultrasonic Spindle!
Suitable for cutting off round shapes from 1mm φ ultrathin filters
Features
1. Cutting off small-diameter round shapes from plates
2. Handles a wide range of works like ultra-thin filters
3. Equipped with the ultrasonic spindle
Suitable Materials
■
Shape
Suitable
products
・Si substrates
・PZT substrates
・Optical filters
Type
Structural Advantages
Core drill
・Cylindrical diamond blade turns at high speed
・Quick processing with less chipping
Examples for processed optical filter
・Infrared filter
Standard Specifications
Fully Automated Core Drill Machines
DAR806
*The specification of this machine may be changed for improvement without notice.
*Please contact our sales department for cutting application inquiries on this machine.
