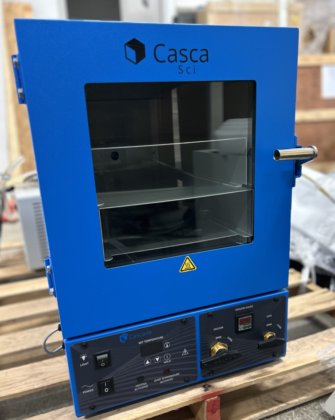

Cascade Sciences CVO-2 Vacuum Oven in Watertown, MA, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- 29226
- Vacuum valve
- Side Mounted Round, ¼ turn lever
- Vent valve
- ¼ turn lever
- Interior lighting
- LED Strips (Rated to 150C), On low temp CVO-10 only
- Window type
- Glass, Tempered NGI-US to ANSI Z97.1.2007
- Vacuum gauge indication
- Digital 0 to 29.9″Hg
- Inert gas introduction
- Use ¼” Vent Barb, 15 psi max inlet pressure
- Unit weight
- 179 lb (81.2 kg)
- Subcategory
- Ovens & furnaces
- Listing ID
- 99153264
Description
Capacity: Volume: 1.67 Cubic Ft. | 47.2 Cubic Liters; Interior: 12”W x 20”D x 12″H (711mm x 609mm x 609mm); Exterior: 18.8” W x 24.5” D x 24.5”H (478mm x 622mm x 622mm)
Temperature Ranges: Low-Temp Processing Range: 26°F to 250°F (121°C); Temperature Uniformity: +/- 2.5°F @ 105°F (40.5°C); Temperature Stability: +/- 0.4°F @ 105°F(40.5°C); Heat Up / Stabilization Time to 250°F: 120 minutes (to minimize overshoot);
Vacuum Valve: Side Mounted Round, ¼ turn lever
Vent Valve: ¼ turn lever
Interior Lighting: LED Strips (Rated to 150C), On low temp CVO-10 only
Window Type: Glass, Tempered NGI-US to ANSI Z97.1.2007
Vacuum Gauge Indication: Digital 0 to 29.9″Hg
Temperature Controller: Screen Type: Digital Set Point; Accuracy: Accurate Within 1°F; Failsafe: INdependent Overtemp Failsafe
Ports-Rear: Vacuum: ⅜” Barb; Vent: ¼” Barb; Auxiliary: KF-25 Port
Inert Gas Introduction: Use ¼” Vent Barb, 15 psi max inlet pressure
Power Options: Power: 110V – 120V / 1ph / 8A 50/60Hz;
