FINGER JOINT SYSTEM - AUTOMATIC - 4" X 141" CAP in Chihuahua, Mexico

and Press
Features:

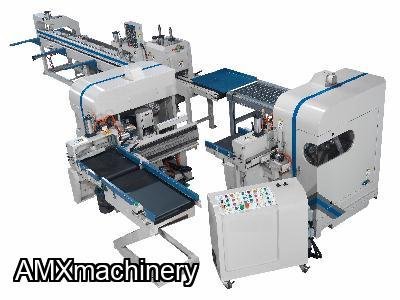

The fully automatic production
line complete with the right hand shaper, left hand shaper, and assembler to produce the mass
to produce the mass finger joint stocks.
The right hand shaper performs
end trimming and shaping functions on right end of sticks.
The left hand shaper performs
end trimming, shaping & gluing functions on left end of sticks.
The two trim saws are fitted
with one saw blade for cutting even end of stick, and one blade for tip break ensuring
break ensuring a great jointing result.

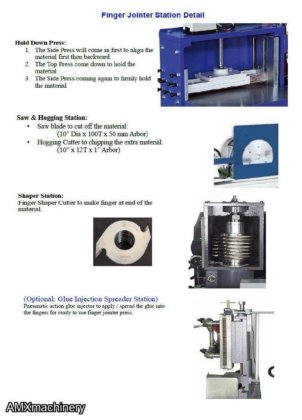

Air-operated clamp comes down
to hold sticks firmly in place. After workpiece is clamped, table starts
to feed, performs trimming and shaping operations.
The shaper spindle is
precision-constructed for cutting finger shapes accurately and
accommodates a maximum cutter diameter up to 6".
