Muffle Furnace With Stir Function in Henan, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Product no
- SX2-STIR-12TP
- Maximum operating temperature
- 1200° C
- Furnace size
- 500 * 400 * 400mm
- Suggested heating rate
- ≤ 10 ° C/min
- Thermocouple
- K-type
- Heating element
- resistance wire
- Power supply
- AC380,50 OR 60Hz
- Rated power
- 12kw
- Hot tags
- muffle furnace with stir function, China muffle furnace with stir function manufacturers, suppliers
- Subcategory
- Muffle furnace
- Listing ID
- 95187000
Description

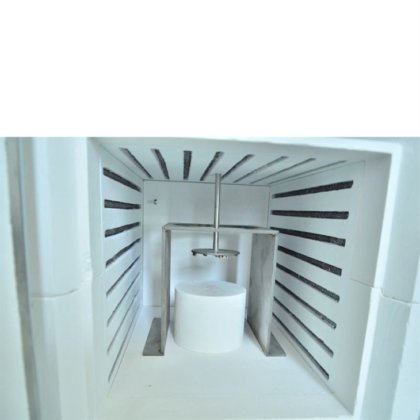

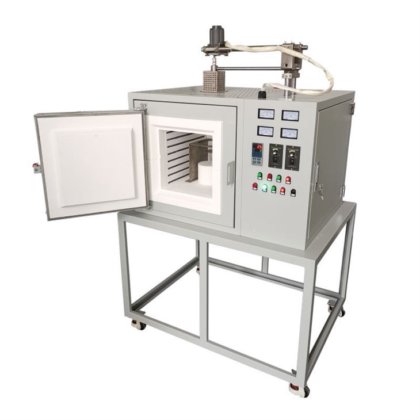

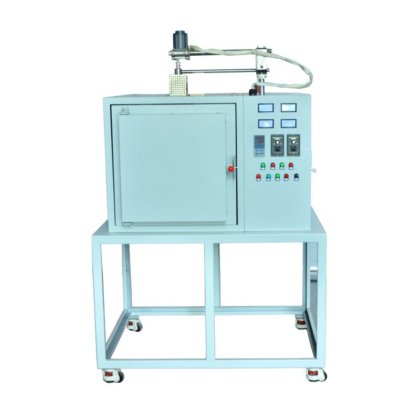

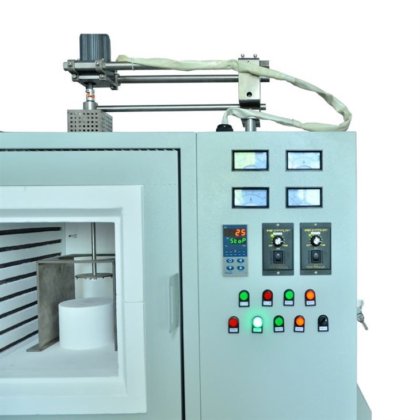

SX2-STIR-12TP is Muffle furnace with stir function.The furnace is equipped with a stirring function inside, and the stirring rod can be raised, lowered, stirred, and stopped with buttons. Maximum temperature of 1200 degrees, 80L internal large space resistance wire heating element, 30 segment intelligent temperature control.
Functional features:
1. The Muffle furnace with stir function is made of high-purity aluminum oxide material, and the heating element resistance wire is embedded inside the furnace, which is heated on three sides
(Left, right, top), with good thermal insulation effect and large volume, it can meet the needs of experiments and small batch production of materials.
2. Set temperature upper limit alarm, over temperature protection, and unmanned operation.
3. Temperature control accuracy ± 1 ° C
4. The shell temperature shall not exceed 60 degrees.
Basic parameters of Muffle furnace with stir function
:
Rated temperature for long-term operation: 1100° C
