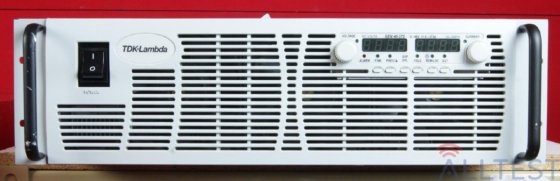

Lambda / TDK / EMI GEN40-375-1S510-3P400-1900 in Farmingdale, NJ, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- 0-5v/0-10v
- option for models with Vout ＜ 600V, standard for models with Vout ＞ 800V
- 4-20ma
- option for all models

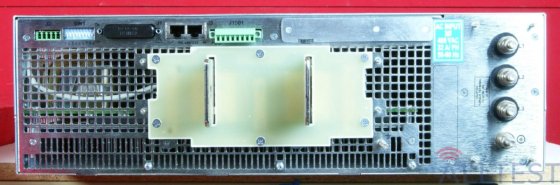

- Output connectors
- Rugged 2 hole busbars (shown) for models where Vout ＜ 20V, single hole busbars for 20V ＜ Vout ＜ 300V Output, and threaded-stud terminals for models where Vout ＞ 300V.
- Rated output voltage
- 40 VDC
- Rated output current
- 375 ADC
- Rated output power
- 15.0 kW
- Temperature stability
- ± 0.05% of Io(rated) over 8 hours, after 30 minute warm up (constant Line, Load & Temperature)
- Temperature coefficient
- ± 300 (± 0.03% of Io(rated)) ppm / °C
- Ocp
- 0 ~ 100 %
- Ocp type
- Constant current
- Foldback protection (fold)
- Output shutdown; Manual reset by front panel OUT button or Digital communication, user-selectable
- Foldback response time
- Less than 1 (Min = 0.25 / Max = 25 / Default = 0.25); Settable via “FBD” command
- Ovp type
- Inverter shut-down; Manual reset by AC On/Off recycle, OUT button, Remote Analog or Digital commuincation
- Ovp programming accuracy
- ± 5% of Vo(rated)
- Ovp trip point
- 5% to 105% of Vo(rated) for Vor ＜ 600V; 10% to 105% of Vo(rated) for 600V ＜ Vor ＜ 1500V, Shall always be greater than 105% of Vo(setting); Default = 105% of Vo(rated)
- Ovp response time
- Less than 10 s(for Output to begin to drop) for Vor ＜ 600V, Less than 2.0 (for Output to begin to drop) for 600V ＜ Vor ＜ 1500V
- Max. ovp reset time
- 7 s(from AC On/Off switch turn On)
- Phase-loss protection
- Yes, power supply shutdown (Latched
- Vout voltage programming
- 0~100%, 0 ~ 5V or 0 ~ 10V, user-selectable., Accuracy & Linearity
- Iout voltage programming
- 0~100%, 0 ~ 5V or 0 ~ 10V, user-selectable, Accuracy & Linearity
- Vout resistor programming
- 0~100%, 0 ~ 5/10kohm full-scale, user-selectable, Accuracy & Linearity
- Iout resistor programming
- 0~100%, 0 ~ 5/10kohm full-scale, user-selectable, Accuracy & Linearity
- Output current monitor
- 0 ~ 5V or 0 ~ 10V, Accuracy
- Output voltage monitor
- 0 ~ 5V or 0 ~ 10V, Accuracy
- Power supply ok (ps_ok) signal
- Yes. TTL High = OK, 0V = Fail (500ohm series impedance)
- Cv/cc signal
- CV
- Enable/disable
- Dry contact; Open = OFF, Short = ON; Maximum voltage across Enable/Disable contacts = 6V
- Remote/local selection
- Selects Remote or Local operation by voltage
- Remote/local signal
- Signals operating mode; Open collector
- Advanced parallel master/slave
- Hx = Master unit, where x = # of Slave units (0 to 4), S = Slave unit(s)
- Voltage
- 4 digits, Accuracy
- Current
- 4 digits, Accuracy
- Green led’s
- PREVIEW, FOLD, REM/LOCAL, OUT ON/OFF, CV/CC, FINE
- Red led
- ALARM (OVP, OTP, FOLD, AC FAIL, ENA, SO)
- Vout programming accuracy
- ± 0.5% of Vo(rated)
- Iout programming accuracy
- ± 0.5% of Io(rated) for units with Io ＜ 187.5A; ± 0.7% of Io(rated) for Io ≥187.5A
- Vout programming resolution
- 0.02% of Vo(rated)
- Iout programming resolution
- 0.04% of Io(rated)
- Vout readback accuracy
- ± (0.1% of Vo(actual) + 0.2% of Vo(rated))
- Iout readback accuracy
- ± (0.1% of Io(actual) + 0.4% of Io(rated))
- Vout readback resolution
- 0.02% of Vo(rated)
- Iout readback resolution
- 0.02% of Io(rated)
- Ov response time
- 20ms maximum (between Vout exceeding IEEE Limit and supply Inhibit turning On)
- Other functions
- Set OVP/UVL limits; Set Local/Remote, Operating parameters and Status, Get Identity
- Cal
- Calibration Available
- As-is
- Unit Sold AS-IS
- Vac input
- 3PH, 400VAC, 32A/PH, 50/60Hz
- Category
- Power Supply in USA
- Subcategory
- Dc power supplies
- Subcategory 2
- Power supplies and loads
- Subcategory 3
- Test & measurement equipment
- Listing ID
- 94625038
Description
The Genesys™ Programmable DC Power Supply Series provides high power density (from 750W to 15kW) with a complete set of user-friendly interfaces in bench-top or rack-mount profiles and offers Output voltages from 6V to 1500V at Output currents up to 1000A using worldwide AC inputs (with built-in Power Factor Correction).
Multiple remote interfacing methods are available including the built-in Remote Analog Program/Monitor (5V/10V) and Remote Digital (RS-232/RS-485) Interfaces along with the optional LAN (LXI 1.5), USB (2.0), IEEE (488.2 compliant) and Isolated Analog (5V/10V and 4-20mA) Interfaces.
All models are CE and UKCA marked in accordance with the Low Voltage, EMC and RoHS Directives, have worldwide Safety Agency approvals (UL/cUL/IEC/EN 61010-1) and offer a five year warranty.
GenesysTM power supplies are wide output range, high performance switching power supplies. The GenesysTM series is power factor corrected and operates from specified AC voltage range continuously.
$3,098 USD
