XINGHAO OMCI in Quanzhou, Fujian, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Power unit
- Diesel
- Operation type
- Driver seated
- Load capacity
- 9000
- Max. stacking layer
- 6
- Lift speed, laden/unladen
- 0.55/0.60
- Lowering speed, laden/unladen
- 0.60/0.60
- Travel speed, laden/unladen
- 26/28
- Climbing ability, laden
- 38
- Tractive force
- 157.5
- Wheel base
- 4520
- The height of the mast lowered
- 11111
- Tilt angle, forward/backward
- 3--4
- Height of mast, extended
- 19244
- Height of cabin
- 4326
- Height, operator's seat
- 3226
- Twist lock height lowered
- 2290
- Max. twist lock height
- 18642
- Overall length
- 6850
- Length to spreader face
- 6682
- Overall width
- 4120/2570
- Width of spreader 20'/40'
- 6050/12150
- Turning radius
- 6300
- Wheelspan, front wheels
- 3280
- Wheelspan, rear wheel
- 2171
- Service weight
- 32280
- Axle load with load, front/rear
- 36610/10670
- Axle load without load, front/rear
- 22480/15800
- Cylinder no./displacement
- 6/6700 cm3
- Rated power @ rated speed
- 164kw @ 2200rpm
- Max. torque
- 949Nm@ 1500rpm
- Rated current of the alternator
- 100A
- Battery
- 24V (2x12/110)
- Transmission
- Auto-shift/interlock
- Clutch type
- Torque converter
- Gear no.
- 3F/3R
- Service brake
- wet-disc
- Parking brake
- Brake enabled when power off
- Steering type-single cylinder
- Double action cylinder
- Drive wheels
- 14.00-24 28PR
- Steering wheels
- 14.00-24 28PR
- Pressure
- 10 bar
- Quantity, front/rear
- 4--2
- Listing ID
- 94446883
Description

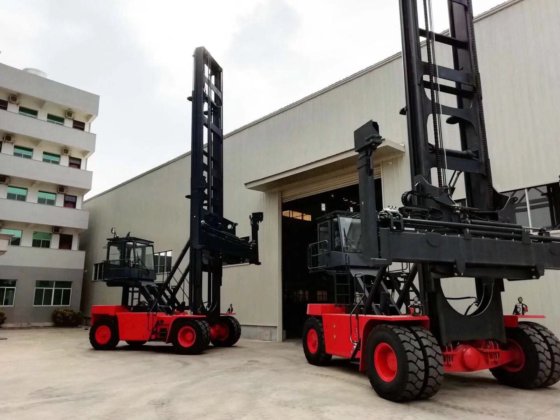

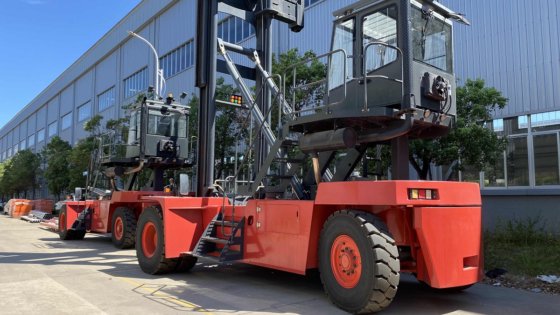

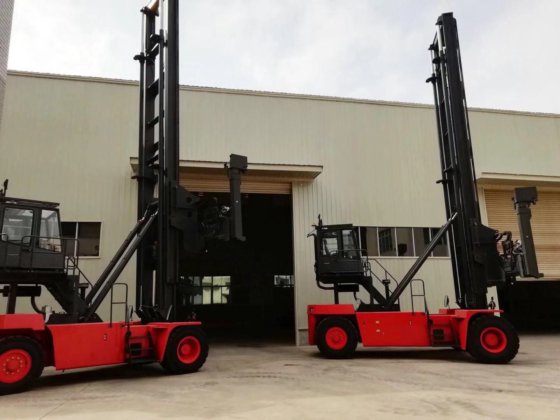

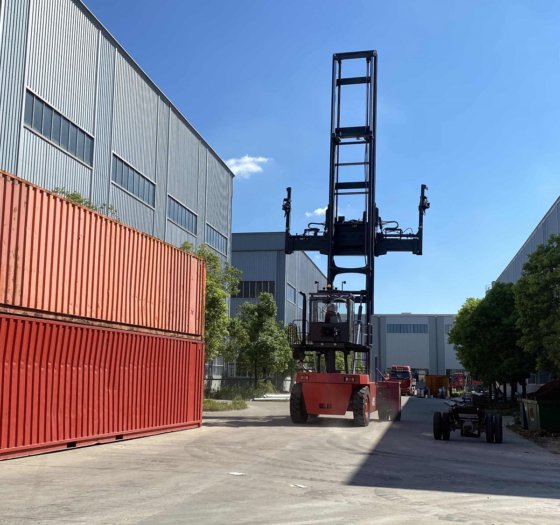

A 9-ton empty container handler is a type of industrial equipment used for handling empty shipping containers. It is designed to lift and move empty containers, typically those without cargo, around shipping yards, ports, or other container handling facilities. These handlers are essential for efficiently organizing and stacking containers to optimize storage space and facilitate container transpo
A 9-ton empty container handler is a type of industrial equipment used for handling empty shipping containers. It is designed to lift and move empty containers, typically those without cargo, around shipping yards, ports, or other container handling facilities. These handlers are essential for efficiently organizing and stacking containers to optimize storage space and facilitate container transportation.
Load Capacity:9000KG
Service weight:32800KG
Maximum stacking layer:7
Engine model: Cummins QSB6.7 Emission 3
Drive Axle model: Kessler D81PL488NLB
