FERPLAST Loading hopper CSJ 25 in Guarene, Piedmont, Italy
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Auger
- tubular diam. 120
- Structure
- painted carbon steel
- Lenght
- mm 4550
- Tube
- thickness 1,5 mm
- Internal spiral
- carbon steel diam. 100 mm
- Shaft
- internal screw diam. 21 mm
- Adapter
- W 63 Rapp. 1: 10 directly mounted on auger shaft
- Electric motor
- Kw 1,5
- Engine rpm
- 350 rev / min
- Flow with inclination of 45°
- 3,7 ton/h
- Receiving hopper
- mm 600 x 600
- Category
- Conveyors in Italy
- Subcategory
- Dosers
- Subcategory 2
- Packing
- Listing ID
- 94235850
Description

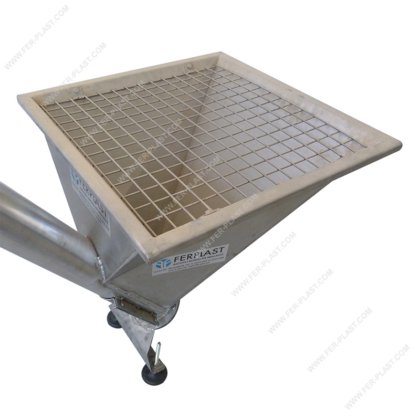

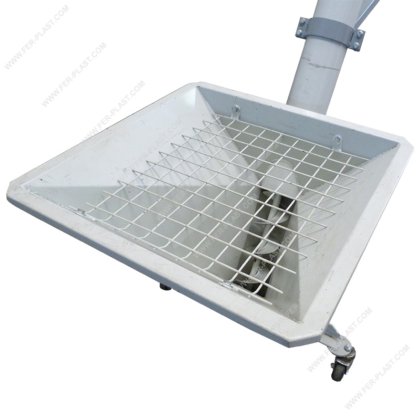

Loading hopper suitable for feeding the dispenser CSJ 25 HI in a safe and fast way.
Tank height tank 800 mm.
LOADING HOPPER FOR CSJ 25 HI DOSER

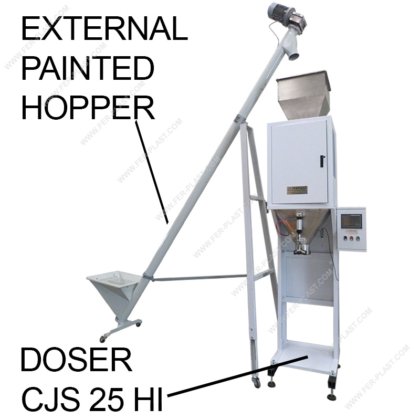

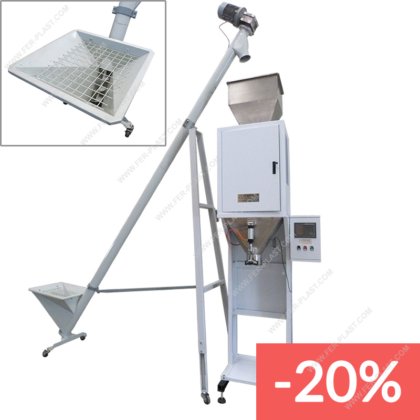

The loading hopper allows to feed the dosing device 25 CJS HI safely and fast without the use of ladders, scaffolding or other improvised systems.
The product is loaded into the tank positioned at a height of about 800 mm. and it is transported by the auger at a height of about 3200 mm.
Attention: the standard hopper is equipped with an on-off button, manageable by the operator. To activate and interrupt the loading automatically, it is necessary to purchase the electrical panel complete with sensor for checking the product level.
The standard hopper is in painted steel,it is also available on request the model built entirely in stainless steel.
Attention:
The machines are supplied complete with CE certification and use and maintenance manual in Italian.
$7,534 USD
