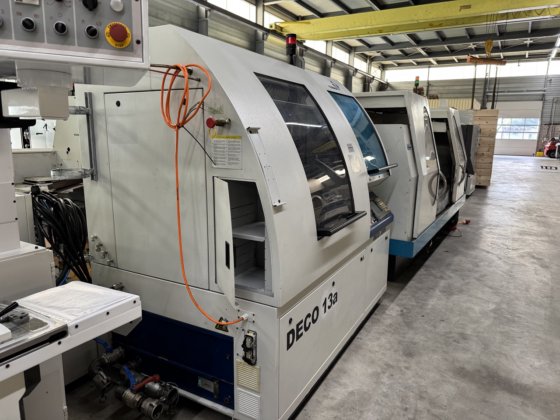

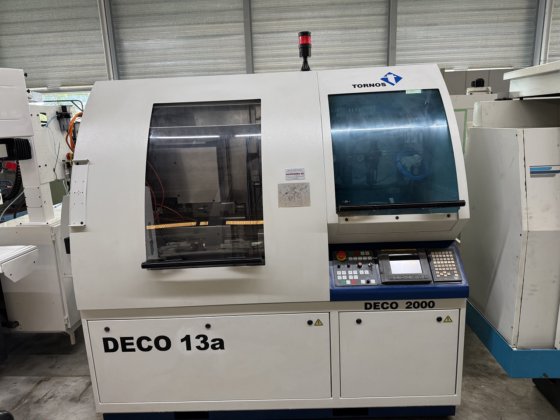

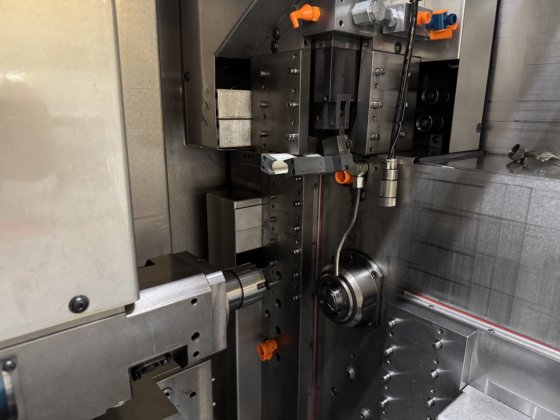

CNC AUTOMATIC LATHE “TORNOS” DECO 2000-13a in Biel/Bienne, Bern, Switzerland
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- 2240015
- Machine with 10 axes and 6 spindles
- Axes and spindle designation
- Part length, max in-bush machining
- 180 mm
- In-collet machining
- 30 mm
- No. of tools, cross gangs fixed
- 2 x 5
- Live
- 3+3
- No. of tools, frontwork gangs fixed
- 4
- No. of tools, backwork gangs fixed
- 3 + 3
- Tag
- Machines
- Category
- CNC Lathes in Switzerland
- Subcategory
- Cnc-lathe
- Subcategory 2
- Turning-swiss turning
- Subcategory 3
- Cnc-lathe, turning-swiss turning
- Listing ID
- 93385013
Description
Manufacturing origin Switzerland
Netweight abt. 2550 kg
Dimensions 2000x1260x1950 mm
Custom position 8458.11 20

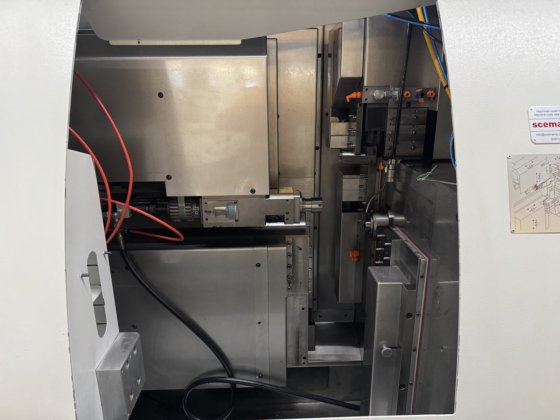

– 1 sliding headstock Z1, S1
– 2 independent tool gangs on vertical X1Y1 ,S6 – X2Y2 ,S2
– 1 frontwork gang, 4 spindles X3Z3 ,S3
– 1 independent pickoff spindle Y4Z4, S4
– 1 independent backwork gang X4 ,S5
Barguide position to the right of the operator
Machine axis height 1100 mm
Main spindle travel max. 255 mm
Bar capacity 1 to 16 mm
Telescope tubin capacity ID 6 to 17 mm
Spindle speed 12’000 min-1
Spindle feedrate max. 20 m/min
Bar capacity for remnant, min 13 mm
for remnant, max 16 mm
Main / pickoff spindle speed 12’000 min-1
Main spindle drive power 2,2 kW (continuous)
3,7 kW (intermittent)
Pickoff-spindle drive power 1,5 kW (continuous)
2,2 kW (intermittent)
Spindle collet, type F20 (no. 76-201)
Guide bush fixed
live
Guidebush collet, type Meister 605
Tool section 12×12 mm
Tool-holding collets live standard – ESX 20
