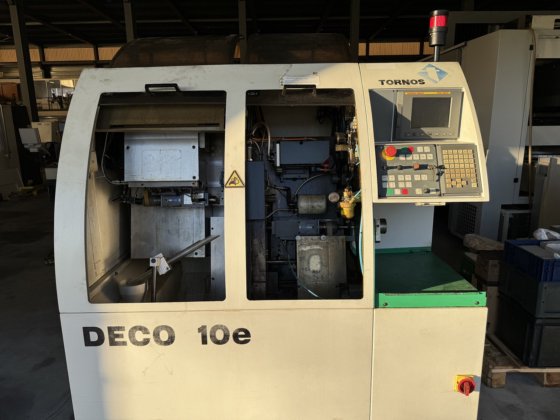

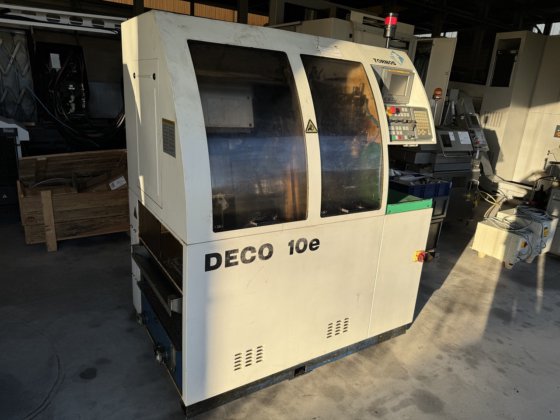

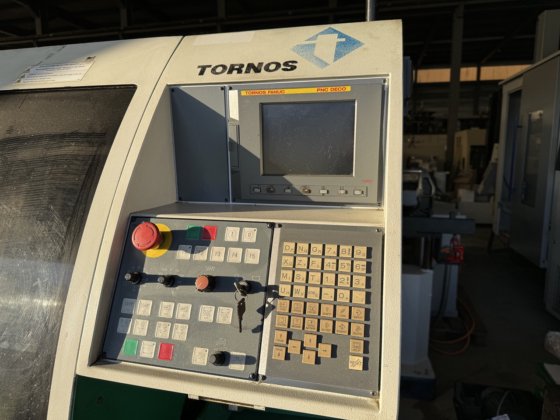

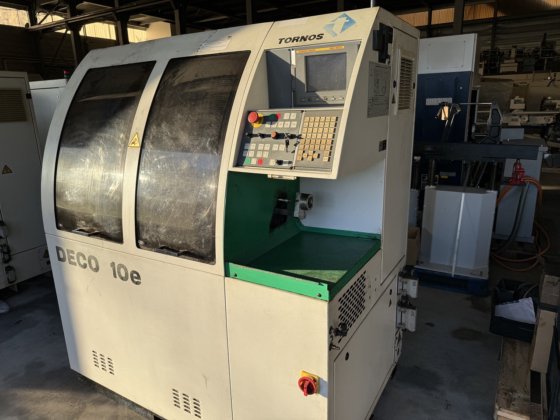

CNC AUTOMATIC LATHE TORNOS DECO 2000 – 10e in Biel/Bienne, Bern, Switzerland
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- 2230048
- Tag
- Machines
- Category
- CNC Lathes in Switzerland
- Subcategory
- Cnc-lathe
- Subcategory 2
- Turning-swiss turning
- Subcategory 3
- Cnc-lathe, turning-swiss turning
- Listing ID
- 92761754
Description
Manufacturing origin Switzerland
Voltage 400V/50Hz/3ph ; 8 KVA ; 12A
Netweight abt. 1500 kg
Dimensions 1650x1050x1850 mm
Custom position 8458.11 20
(standard execution)
Headstock (axis Z1) (+C axis optional)
Bar capacity of max bar dia. 10 mm
Max workpiece length according to guide bush type 60/90 mm
Rotation speed of the programmable spindle 0-16000 min-1
Positioned stopping and indexing increment 0,1°
Max spindle power 1,1 (3,7) kW
Guide-bush holder (X1/Y1) (X2/Y2)
Number of tools on guide bush (2 slides ; 2 x 2 axis) 2 x 4
Cross section of tools 8 x 8 mm
Number of cross drilling/milling attachment on guide bush 4
Programmable rotation speeds 0-12000 min-1
End attachment (X3/Y3)
Max number of end tools 3
Programmable rotation speed 0-12000 min-1
Opposite spindle and counter-operation (X4/Z4) (C-axis optional)
Clamping capacity max diameter 7 mm
Programmable rotation speed 0-16000 min-1
Positioned stopping and idexing increment 0,1°
