2012 Injector sandblasting system with turntable #B16898 in Riesa, Saxony, Germany
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2012
- Stock number
- B16898

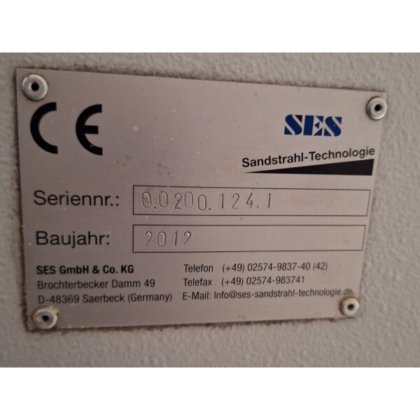

- Hesteller
- SES GmbH & Co KG
- Indexing turntable diameter approx.
- 1.3 m
- For
- Machined components
- To the
- Cleaning and rounding
- With
- Stainless steel abrasive or corundum
- Article weight
- 3.400,00 kg
- Subcategory
- Process engineering
- Subcategory 2
- Sandblasting facilities
- Listing ID
- 92281415
Description
with 7 workpiece holding satellites

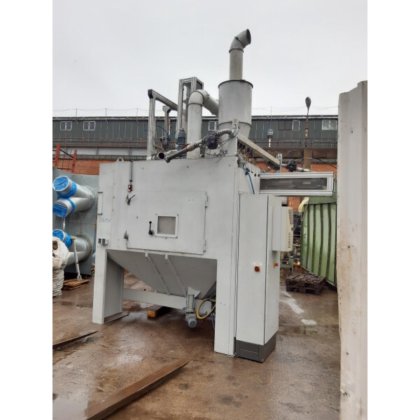

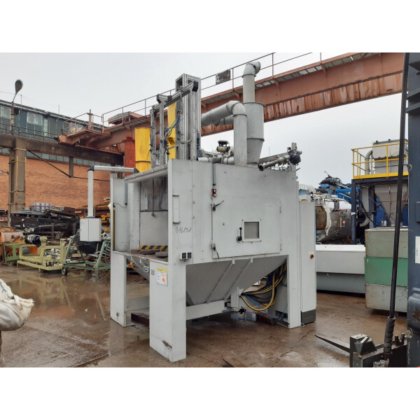

Injector-cycle turntable blasting machine, sandblasting machine, blasting cabin, sandblasting machine used
Material 12 mm steel
Drive through rotary indexing table

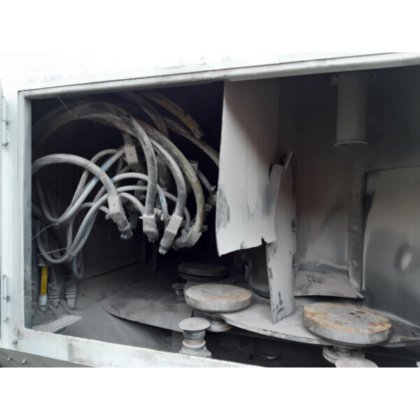

7 workpiece holding satellites
Diameter per satellite table approx. 250 mm
Load capacity 20 kg max. each
Satelites with rotary drive 10 to 60 rpm
max workpiece height approx. 300 mm

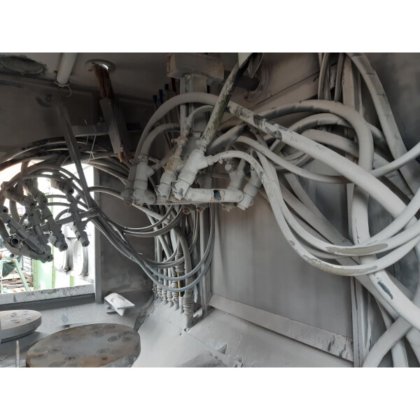

2 stations with 8 high-performance blasting heads SES type S500
Air consumption per nozzle 2 m³/min, 6 bar
One station vertically movable by geared motor 0.25 kW, max 600 mm, 4...20 mm/s
One station horizontally movable by gear motor 0.25 kW, max 300 mm, 4...20 mm/s

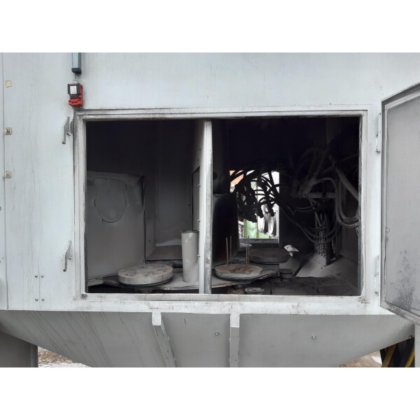

Feeder gate approx. 540 x 570 mm
Workpiece blow-off station with ring conveyor fan 1.5 kW
Dimensions of the work area approx. 2.3 x 2.3 x 1.2 m
Lining with 5 mm rubber

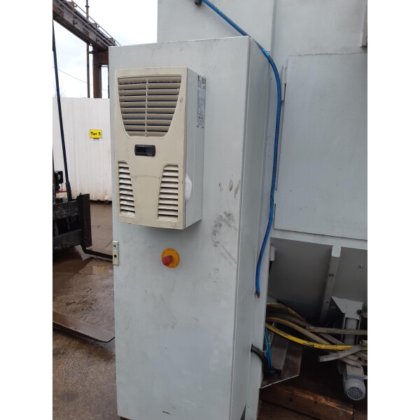

Control voltage 24 V

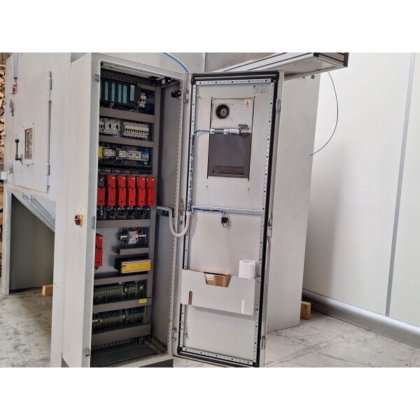

SIEMENS SPS S7
Total power requirement approx. 5.5 kW
400/660 V
Space requirement of the assembled system approx. 5 x 3.7 x 4 m
Height for transportation approx. 2900 mm
Cycle time depending on part size
