High Precision Computer Control Hydraulic Universal Tensile Testing Machine for Material Testing Laboratory in Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Lifetime
- Max diameter of workpiece
- 1000mm
- Mass scope of workpiece
- >20000kg
- Maxcapacity
- <1000KN
- Accuracy grade
- 0.5
- Load way
- Mechanical Load
- Loading method
- Dynamic Load
- Display
- Computer
- Control
- Computer Control
- Weight
- 500-1000Kg
- Power source
- AC380V
- Oil cylinder position
- Under
- Hs code
- 9024101000
- Production capacity
- 5000
- Category
- Materials Testing in China
- Subcategory
- Test machine
- Subcategory 2
- Test instrument
- Subcategory 3
- Instruments & meters
- Subcategory 4
- Tensile testing machine
- Listing ID
- 92236628
Description

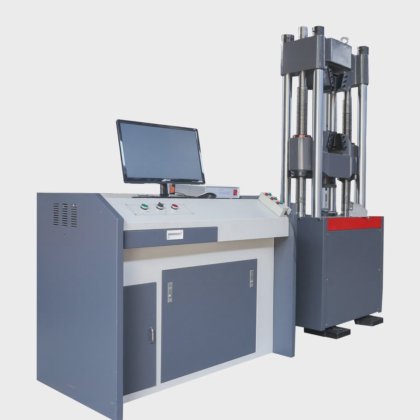

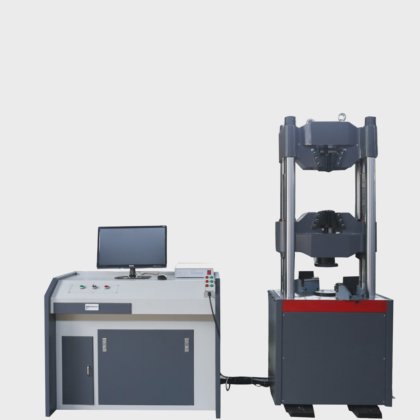

WEW-600 Digital Display Hydraulic Universal Testing Machine with High Pressure Pump
1. Application
Universal Tensile Strength Testing Machine price is suitable for tension, compression, bending, shearing,peeling, tearing and other tests by adding different test fixture for metal and nonmetal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
2. Standards
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
3. Main specifications
Model
UTM-300KN
UTM-600KN
UTM-1000KN
UTM-2000KN
Max.load
300KN
600KN
1000KN
2000KN
Load accuracy
Class 1
Load range
1%-100%FS
Load resolution
1/500000
Piston Stroke
200mm
200mm
250mm
250mm
Max. tensile test space
600mm
700mm
700mm
800mm
Max. Compression test space
550mm
650mm
650mm
