High-Efficiency 4-Roll Plate Rolling Machine for Tank Shell Forming with Low Noise Operation in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 3years
- Specific
- W12-10×1000
- Maximum coil thickness
- T10*W1000*φ400 (σs≤245MPa)
- Maximum pre-bending plate thickness
- T8*1000*φ400 (σs≤245MPa)
- Maximum roll width
- 1000
- Working length of rollers
- 1050
- Remaining straight edge length
- 2 Times Board Thickness
- Yield limit of rolled sheet
- 245
- Rolling speed
- Rolling Speed
- Upper roll diameter
- 190
- Lower roll diameter
- 180
- Side roller diameter
- 160
- Transport package
- Wooden Tray
- Specification
- SET
- Hs code
- 8462390000
- Production capacity
- 216, 000pieces/Years
- Subcategory
- Manufacturing & processing machinery
- Listing ID
- 92222721
Description
Cylinder Four-Roll Plate Rolling Machine for Tank Shell Forming with Low Noise Operation
Main photos
Product Description
12-10×1000
Full CNC hydraulic four-roller plate rolling machine
Rolling machine rolling process is a continuous three-point bending process of the plate, according to the different rolling temperature can be divided into
Cold roll, hot roll and warm roll.

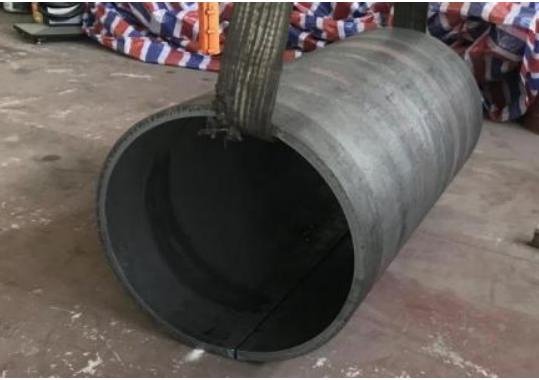

It is mainly due to a certain thickness of metal plate bending into cylindrical, curved,
Rectangular and other curvature or variable curvature of mechanical equipment, is a metallurgy, building materials, petroleum, chemical, water conservancy and electricity, bridge, beams, coal, carbon and other industries.
Beam, coal, carbon, mining, shipbuilding, boilers, aviation, power transmission equipment manufacturing industry, one of the necessary mechanical equipment.
It is one of the necessary mechanical equipment for metallurgy.

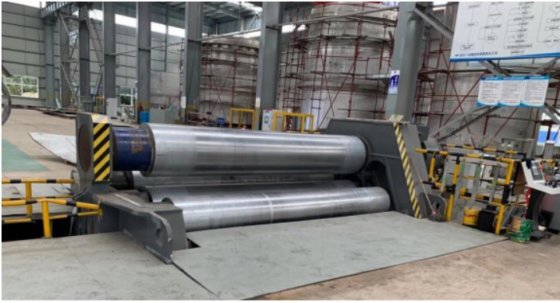

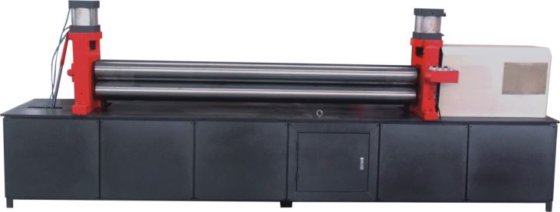

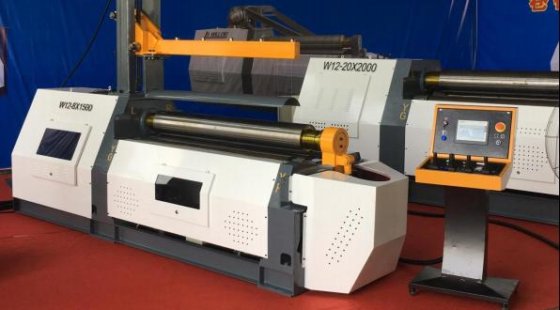

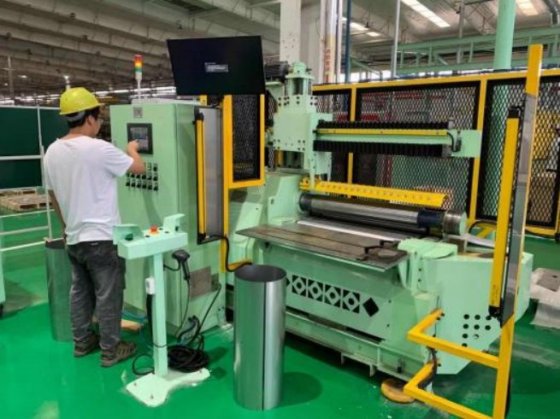

Detailed Photos
Product Parameters
Item
unit
parameters
serial number
$56,789 USD
