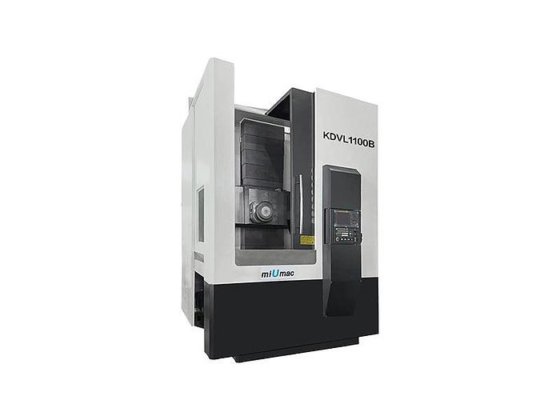

KDVL1100B/1300B CNC vertical lathe vertical cnc lathe Cnc machine vertical in Shaoxing, Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Year
- 2024
- Sports event
- Unit KDVL1100B KDVL1300B
- Maximum turning diameter
- mm Ø1100 Ø1300
- Maximum cutting diameter for disc parts
- mm Ø 1100 Ø 1300
- Maximum cutting diameter for axle parts
- mm Ø700 Ø900
- Maximum cutting height
- mm 1000 1000
- X axis maximum travel
- mm -20;+675 -20;+675
- Maximum travel of z axis
- mm 1120 1120
- X-axis rapid traverse
- m/min 16 16
- Z-axis rapid traverse
- m/min 16 16
- Spindle nose
- A₂-15 A₂-15
- Spindle speed
- rmp 50~600 400 (the highest when installing manual four claws).
- Item
- Unit KDVL1100B KDVL1300B
- Maximum load of workbench
- kg 4000 (with chuck) 4000 kg (with chuck)
- Manual heavy duty four-jaw chuck
- mm Ø800 Ø1000 mm
- Tool station
- Pieces 12 work stations horizontally/4 work stations vertically (optional) 12 work stations horizontally/4 work stations vertically (optional)
- Outside diameter cutting tool holder
- mm 32×32 32×32
- Maximum inner diameter cutting tool holder
- mm Φ50 (horizontal) / Φ60 (vertical) Φ50 (horizontal) / Φ60 (vertical)
- Spindle motor power
- kw 30 50
- Hydraulic motor
- Kilowatt 2.25 2.25
- Water pump motor
- w 750 750
- Dimensions (l×w×h)
- mm 2950×3500×3900 3100×3750×3900
- Net weight
- Kilogram 15500 16500
- Max.swing dia.
- mm Ø1100 Ø1300
- Max.cutting dia. for disc parts
- mm Ø 1100 Ø 1300
- Max.cutting dia. for axle parts
- mm Ø700 Ø900
- Max.cutting height
- mm 1000 1000
- Max.travel of axis x
- mm -20;+675 -20;+675
- Max.travel of axis z
- mm 1120 1120
- Rapid feed for axis x
- m/min 16 16
- Rapid feed for axis z
- m/min 16 16
- Max.table load
- kg 4000（With chuck） 4000kg（With chuck）
- Manual heavy-duty four-jaw chuck
- mm Ø800 Ø1000mm
- Tool post stations
- pcs Horizontal 12 stations/Vertical 4 stations (optional) Horizontal 12 stations/Vertical 4 stations (optional)
- Outer dia. cutting tool shank
- mm 32×32 32×32
- Max.inner dia. cutting tool shank
- mm Φ50（Horizontal）/Φ60（Vertical） Φ50（Horizontal）/Φ60（Vertical）
- Hydraulic motor
- kw 2.25 2.25
- Water pump motor
- w 750 750
- Overall dimensions (l×w×h)
- mm 2950×3500×3900 3100×3750×3900
- Net weight
- kg 15500 16500
- Category
- CNC Lathes in China
- Subcategory
- Cnc vertical lathe
- Listing ID
- 91986946
Description
The cnc vertical lathe is perfect for turning heavy parts, brake discs, pump housings, aerospace and power generation parts and much more.
1.Compact vertical structure design.
2.Rigid spindle bearing structure ensures machines' heavy cutting.
3.Precision linear way and ball screw used.Machine totally sealed guard structure. Back side chip conveyor equipped.
CNC machine vertical
torno-vertical
vertical-cnc-lathe
automatic-screw-machines
