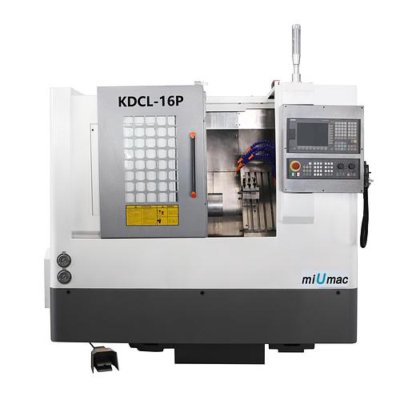

KDCL 16P multi function CNC lathe machine automatic turret lathe with bar feeder TURNING CENTER Torno cnc in Shaoxing, Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Year
- 2024
- Sports event
- Unit KDCL-16P
- Maximum swivel diameter on bed
- mm Ø320
- Maximum rotation diameter slides through
- mm Ø140
- Maximum processing length
- mm Ø260
- Spindle nose
- A₂-5
- Item
- Unit KDCL-16P
- Spindle hole
- mm Ø52
- Spindle speed
- Speed 60-5000
- Hydraulic chuck diameter
- 6
- X/z rapid feed
- m/min 18/20
- X-axis maximum travel
- mm 320
- Z-axis maximum travel
- mm 320

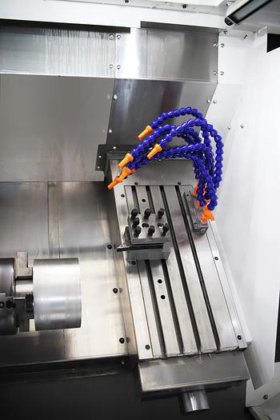

- Tool table size
- mm 250×670
- Tool holder type
- Help tool
- Standard outer diameter cutting tool holder
- mm 20 × 20
- Maximum. the inside diameter of. cutting tool holder
- mm Ø25
- X/z linear guide width
- mm 25/30
- X screw diameter × pitch
- Ø25×10
- Z screw diameter × pitch
- Ø32×10
- Spindle motor power
- Kilowatt 3.7
- Lathe structure
- 45° inclined bed
- X/z positioning accuracy
- mm ≤0.006/0.006
- Max.swing dia. over bed
- mm Ø320
- X/z repeat positioning accuracy
- mm ≤0.004/0.004
- Cooling pump power
- W 180
- Lubrication pump capacity
- L 1.8
- Dimensions (l×w×h)
- mm 1950×1580×1730
- Net weight
- Kilogram 1800
- Category
- Lathes in China
- Subcategory
- Multifunctional cnc lathe
- Listing ID
- 91986920
Description

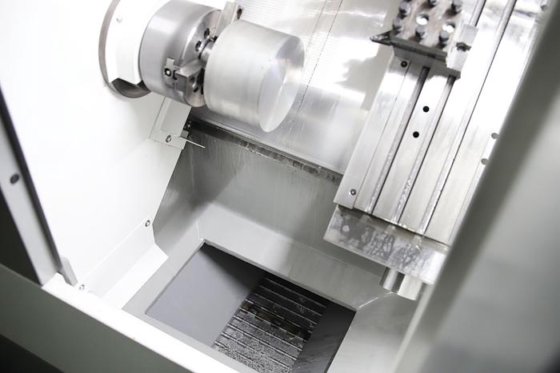

The compact design of a slant bed lathe is optimized for good chip removal.
1. One-piece slant bed increases machines' rigidity and easy chip conveying.
2. X and Z axes adopt precision linear guide with no back-lash to result high rigidity and accuracy.

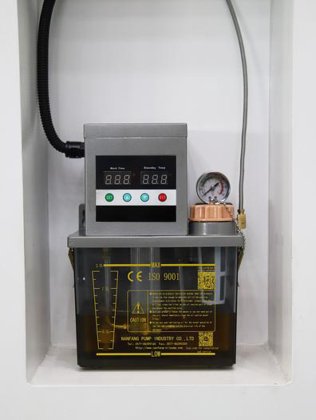

3. Convenient and stable automatic lubrication.
