1.5 Cubic Foot Rubber Belt Tumble Shot Blast System with Dust Collector in Mentor, OH, USA
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Year
- 2023
- Control
- Semi-Automatic
- Finishing process
- Barrel Tumbling
- Power source
- Electric
- Category
- Dust Collectors in USA
- Subcategory
- Finishing machines
- Subcategory 2
- Metalworking equipment
- Subcategory 3
- Cnc, metalworking & manufacturing
- Listing ID
- 91520363
Description
Model: Q324 Rubber Belt Tumble Blast System
Outside overall blast system dimensions: 52" wide x 48" deep x 98" tall (+ 4" shipping pallet height)

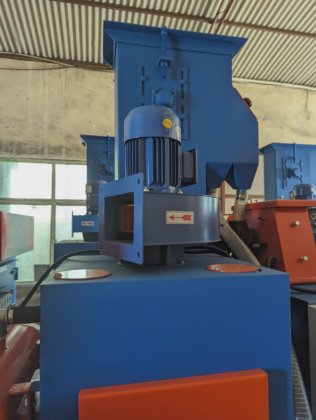

Blast wheel power: 5HP direct drive
Cabinet volume: 1.5 cubic foot

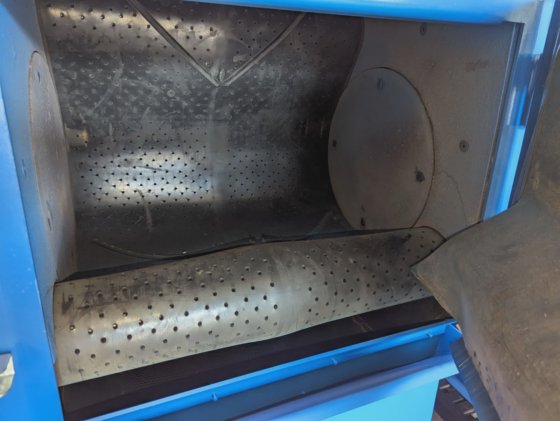

Inside cabinet dimensions: 15.748" diameter x 25.591" wide
Rubber mill belt load capacity: 220 lbs
Single workpiece max weight: 22 lbs
Rubber mill belt: 1HP VFD tumble speed controlled
Bucket elevator: 1HP
Initial media loading capacity: 143 lbs (65kg)

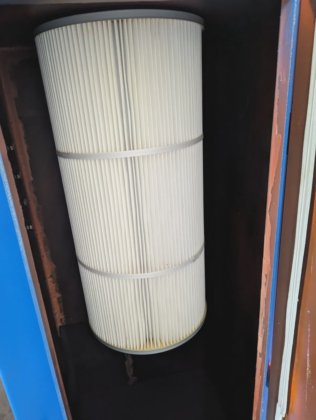

Dust collector: 1,177CFM with a 2HP blower and single cartridge with reverse pulse cleaning with explosion vent
Total installed power: 9.387HP (7kW)
Freight: FOB Mentor, Ohio 44060
