Yd Easy Operation Irregular Glass Shape Edging Machine Processing Multiple Edge Curve in Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- CE
- Voltage
- 220/380/415/480V, 50/60Hz
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Function
- to Process Outer Edge of Glass
- Application
- Furniture, Shower Room Glass, Decorative Glass
- Edging shape options
- Flat Edge, Bevel, Pencil Edge, Ogee Edge
- Glass diagnal size
- 100-2000mm
- Glass thickness
- 3-30mm
- Beveling angle
- 0-30 Degree
- Max. beveling width
- 40mm
- Outer dimension
- 1.2X1.2X1.6m
- Power
- 2.6kw
- Weight
- 760kg
- Inner hole edging function
- Please Refer to Model Yd100-2000b
- Color
- Grey or as Requested
- Core components
- Motor, Vacuum Bump
- Features
- Portable, Multifunction
- Structure
- Horizontal
- Control system
- Manual
- Glass washing machine type
- /
- Glass edging machine type
- Shape Edging Machine
- Grinding head number
- 1-3
- After-sales service
- Lifetime Online Technical Support
- Transport package
- Wrapped in Plastic Bubble Sheet
- Specification
- 1.2x1.2x1.6m
- Hs code
- 8464201000
- Production capacity
- 30 Sets/Month
- Category
- Glass equipment in China
- Subcategory
- Glass machine
- Subcategory 2
- Glass edging machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 91400640
Description
Product Description

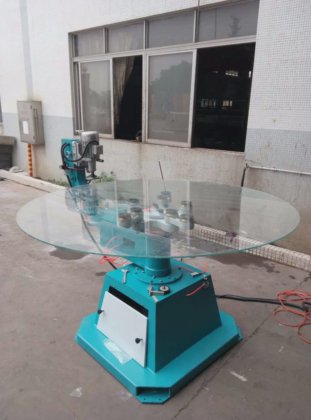

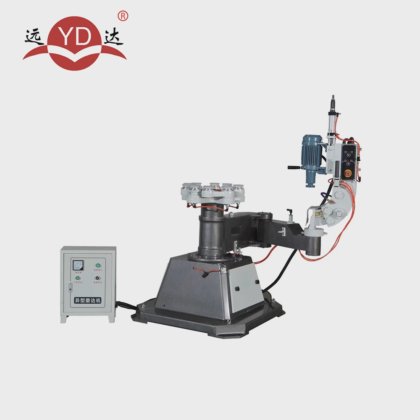

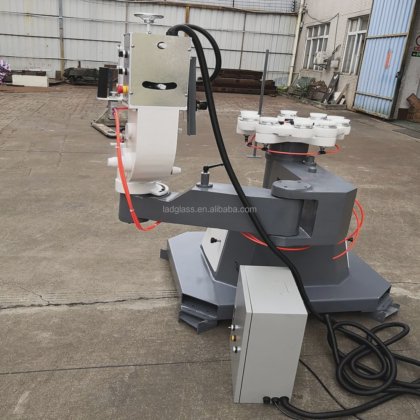

Glass Shape Edging Machine For Processing External Curve
YD100-2000
Glass Shape Edging Machine is used to grind and polish the external and internal edge of flat glass, the shape of which is round, oval, rectangle, or even irregular.
The machine is widely applied in the production of glass tabletops and irregular decorative glass.
Product Parameters
Model
YD100-2000
Glass Diagnal Size
100-2000mm
Glass Thickness
3-30mm
Edging Shape Options
Flat edge, bevel, pencil edge, ogee edge
Beveling Angle
0-30 degree
Max. Beveling Width
40mm
Outer Dimension
1.2x1.2x1.6m
Weight
760kg
Power
2.6kw

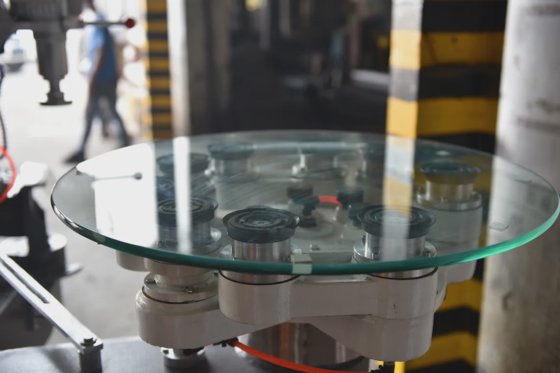

*Rotary Table
1. Quality and durable vacuum suckers to fix the glass, ensuring a more stable support to glass and more precise processing
2. Rotary table is driven by motor for semi-automatic grinding
3. Rotating speed is regulated by frequency converter

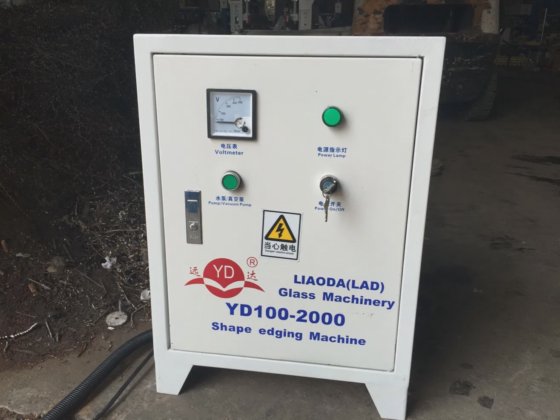

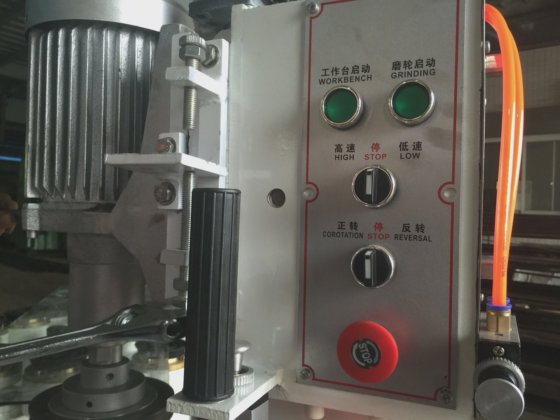

*Control Panel
1. Straight-forward instruction on the control panel
2.
