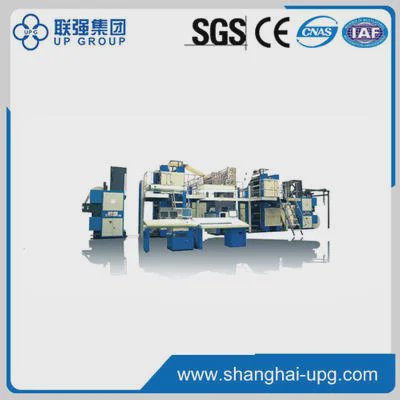

LQ-40B Mini Web Offset Press for Newspaper in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 30
- Printing paper size
- Four Folding Machine
- Printing color
- Four-color Machine
- Color & page
- Multi-Colour
- Automatic grade
- Automatic
- Printing speed
- 12000
- Motor power (km/hp)
- 23kw
- Web width(mm)
- 914
- Max web diameter(mm)
- 1270
- Paper weight(g/m²)
- 47-60
- Max printing area(mm²)
- 565x900
- Transport package
- Wood Package
- Specification
- 7380X2550X1950mm
- Hs code
- 8443110000
- Production capacity
- 10000
- Category
- Offset press in China
- Subcategory
- Printing machinery
- Subcategory 2
- Packaging & printing
- Subcategory 3
- Offset printing machine
- Listing ID
- 90851374
Description
Product Parameters
Technical parameters
LQ-40B
Web width(mm)
914
Max web diameter(mm)
1270
Paper weight(g/m²)
47-60
Max printing area(mm²)
565x900
Cutoff(mm)
578.5
Max speed(rph)
40,000
Adjustment of the plate
Axial:±2.5
Circumferential:±1.5
Folding format
8 Half-fold(16mo, 32mo as optional)
Printing capability
One color, two colors and four colors on each side
Tower dimension(mm)
1600x2200x4800
Tower weight(kg)
20,000
Folder weight(kg)
9,000
Product Description
LQ-40A(B) is mini web offset press of tower printing unit for newspaper designed. It is mainly used in double side printing of 4 color newspapers. The cut off size of 40A is 546mm, and 40B is 578mm. The advantages of 40A(B) include high-speed, high automation, accurate registration with the capability of 2 or 4 colors printing on double sides red-spot printing on both sides of the newspaper.
