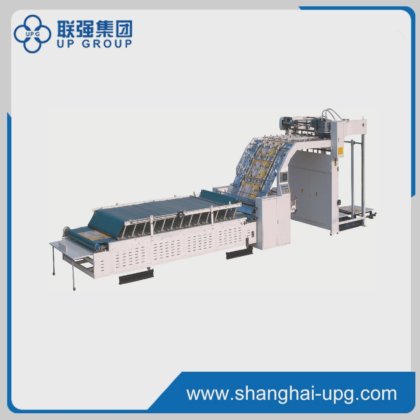

LQM Series Automatic Flute Laminator in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Classification
- Thermal Laminating Machine
- Driven type
- Electric
- Automatic grade
- Automatic
- Membrane material
- BOPP Pet..
- Plastic film mulching modes
- Hot Laminating
- Max. sheet size
- 1300×1300mm
- Min. sheet size
- 400×400mm
- Max. machine speed
- 153m/min
- Total power
- 16.25kw
- Transport package
- Wooden Packaging
- Specification
- 14000× 2300× 2700mm
- Category
- Coating & Laminating in China
- Subcategory
- Packing machinery
- Subcategory 2
- Laminating machine
- Subcategory 3
- Packaging & printing
- Listing ID
- 90847697
Description
Product Description
LQM Series Automatic Flute Laminator adopts unique pressing spring front lay registration design compliant with PLC control system which makes machine run at high lamination precession and low rate of breaking down.
The machine uses speed variators, PLC central control, simulation to digit program system.
The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.
Balance-tested rollers, tight assembling technique, plus timing belts driving mechanic system makes the machine runs at low noise with high precision.
The machine adopts automatic glue supply and recyclable glue circulating system.
Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction. The electric parts used are all world wide available brand or well-known Chinese brand.
