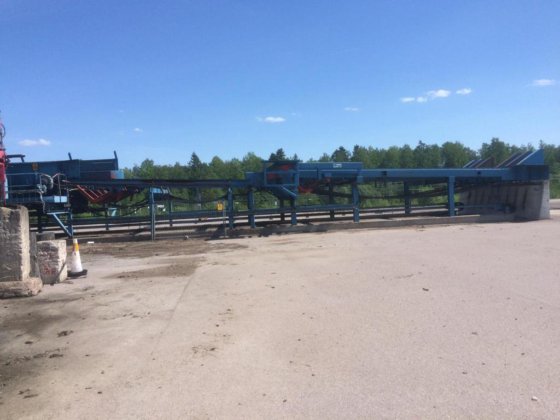

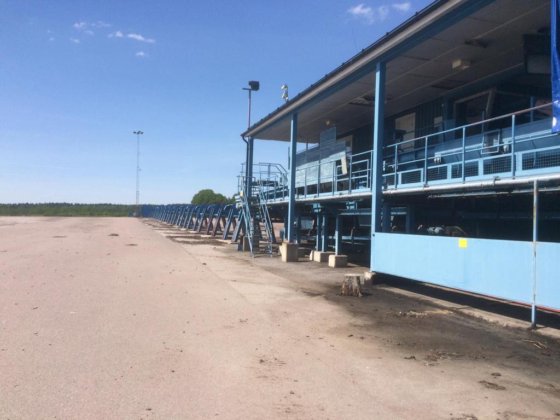

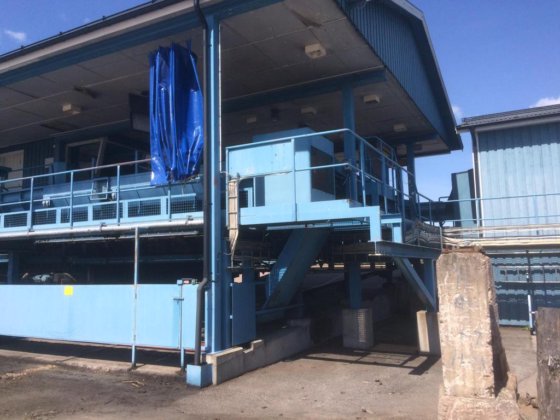

Log sorting line INTERLOG in Ikšķile, Ogre Municipality, Latvia
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- 1. sorting pockets
- 2 x 30 pcs
- Productivity
- 9500 pcs in 450 minutes
- 3d scanner rema sawco model
- Ruler/Ruler E technical parameters:
- Category
- Woodworking equipment in Latvia
- Subcategory
- Log sorting lines
- Subcategory 2
- Woodworking equipment
- Listing ID
- 90520608
Description
2. Guarantee carrier
3. Drive with motor reducer
4. Hydraulic system
5. Automated
6. 3D scanner
7. Metal detector

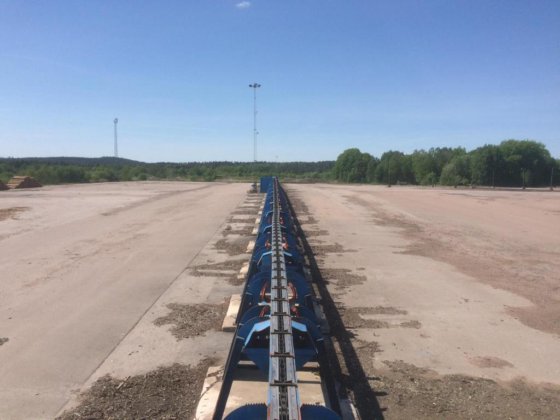

8. Conveyor system
9. Operator control panel
10. Equipment technical documentation
Technical parameters of the line:
The diameter of the logs is 100 mm
Max log diameter 650 mm
Min log length 3 m
Max log length 6 m
Max long conveyor speed 120 m/min
Мin log diameter 100 mm.
Max log diameter 600 mm
Min log length 1 m.
Max log length 9 m.
Log tolerance for diameter 1mm.
Log length tolerance 20 mm.
Total electrical power 350 Kw including PLC and monitors.
The operating temperature for the scanner is 0 to +40 С.
Seller Reviews
$527,301 USD
