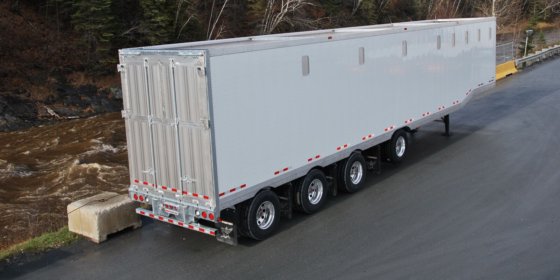

Robust low-loader chip van in Quebec, Canada
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Length
- 48'-53'
- Width
- 102 "
- Coupling height
- 47"-50"
- Coupling rod
- 36"-42 "bolted
- Plateau descent
- 12"
- Coupling plate
- 5/16" thick, reinforced, 100,000 lbs in./car,
- Crosspieces
- 4" I-beams
- Floor
- 3/4" plywood coated with linseed oil
- Chassis
- I-section, made of 100,000 lbs/ . steel, full-length with 11-gauge steel wheel flanges above the tires, flush with the wood floor
- Front wall
- 6-post design, pre-painted aluminum with double-leaf aluminum corners, unpolished outside and aluminum plate inside
- Interior finish
- 3/8" plywood with silicone-sealed joints
- Front wall insulation
- Front wall "Polyform", 1 3/4" thick. Front corners, "Polyform", 1" thick.
- Scale
- An aluminum ladder on the front wall on the road side
- Side panels
- Pre-painted white aluminum (.049")
- Posts
- Aluminium, 45 mm, 16" c/c, full length
- Bottom rail
- Aluminum extrusions, 9" high
- Side wall insulation
- Polyform, 1 1/2" thick
- Sample door
- One in 10" x 14" aluminum installed on the road side
- Air vents
- 4 openings 11" x 19" on each side, with perforated aluminum plate
- Rear door frame
- Galvanized (G164)
- Rear door lintel
- 4" x 4" x 3/16" formed steel
- Doors
- Simple aluminum toggle. Sill-mounted door latch with track-side handle.
- Bumpers
- Approved, CMVSS 223-RIG (in accordance with Canadian & U.S. law). Formed steel uprights, 4" x 4" tubular bottom rail with solid steel bumpers
- Back door insulation
- "Polyform, 1 1/2" thick
- Rear door finish
- Pre-painted white aluminum (.049)
- Roof
- Open type
- Roof cladding
- 3, galvanized steel (G164), non-lowered and without hinges
- Canvas support
- 1/4" aluminum plate at each end of the unit for side-wind type canvas
- Main system
- Sealed lights and cables, Grote Ultra Blue LED, meet Transport Canada and DOT standards
- Front socket
- 7-pole (SAE J560)
- Lights
- Impact-resistant, polycarbonate LED sealed lenses
- Additional front socket
- 7-pole (ISO 3731) for auxiliary functions
- Reversing lights
- 2 lighthouse-type, sealed in a rubber sheath with the rear closed
- Vertical supports
- Holland, 2-speed with self-levelling square feet
- Structure
- Attached to subframe
- Suspension
- Hendrickson HT or Intraax pneumatic
- Brakes
- Long lasting, 16 1/2" x 7"
- Wheel ends
- Oil or grease
- Wheels and drums
- 10 long bolts, balanced brake drums with external mounting
- Rims
- Steel wheels, aluminum option
- Tires
- Continental 22.5
- Abs system
- ABS Wabco 2S-1M
- Mudguards
- In black rubber with Manac logo
- Air hands
- Fixed, front
- Decals or lettering
- Reflective strips comply with DOT and CMVSS codes
- Category
- Trailers in Canada
- Subcategory
- Chip vans
- Listing ID
- 87514027
Description
Reinforced galvanized rear sill with integrated push blocks
5 1/2" high extruded aluminum top rails
Roof hoops ready for tarp system
Aluminum plate on front wall for easy access to electrical system and connectors
