VSI Sand Making Machine Good Sand Grain Type Sand Making Machine Price for Mining and Quarry Industry in Henan, China

2. Low energy consumption, large capacity and crushing ratio.
3. Perfect cubic product size and high bulk density.
4. Less spare parts. Spare parts are made of special hard material, which make them of long service life and easy to change.
＞＞＞ VSI Sand Making Machine Working Principle
Hard stone materials fall into the crusher and are divided into two parts. One part goes into the high-speed-running impeller of the machine, and the other part goes around the impeller.The two parts materials bump and crush fast during the effect of centrifugal force. Then the materials run like swirl, bump and rub to each other again and again. The finished products go out from the bottom of the machine, and users can get the requested products size after screening by vibrating screen. Baichy VSI sand maker adopts central feeding and central cascade feeding way, which can be changed based on customers' needs.
Product Parameters
Model
VSI-7611
VSI-8518
VSI-9526
VSI-1140
VSI-1145
Capacity (t/h)
Cascade and Center Feeding
120-180
200-260
300-360
450-520
490-600
Center Feeding
60-90
100-130
150-190
225-260
250-310
Feeding Size (mm)
Soft Material
＜ 35
＜ 40
＜ 45
＜ 50
＜ 50
Hard Material
＜ 30
＜ 35
＜ 40
＜ 45
＜ 45
Rotation Speed (r/min)
1700-1890
1520-1690
1360-1510
1180-1310
1180-1280
Power of the Double Motors (kw)
110-150
180-220
264-320
400-440
440-520
Overall dimension L*W*H (mm)
3700*2150*2100
4140*2280*2425
4560*2447*2278
5000*2700*3300
5100*2790*3320
Power Source
380v:50hz
Vibrating Sensor
Inspection Scope:0.1-20mm/s, it can be adjusted continuously.
Hydraulic Lubrication Station
Power of Double Oil Pump
2x0.31kw
Safety
Double oil pumps make sure supply of oil with; Stop automatically without oil flow or oil pressure; Water cooled; Heating start the motor in winter.
Overall Dimension L*W*H (mm)
820x520x1270
Power of Oil-Box     Heater
2kw

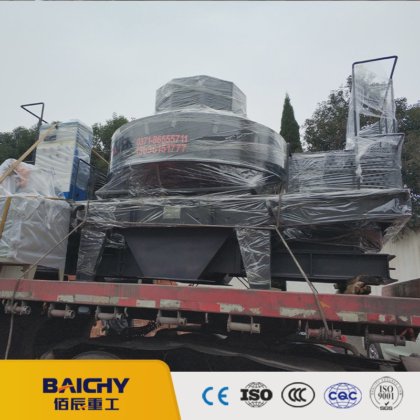

Packaging & Shipping
Baichy is gradually expanding its business market depending on quality performance and service support. Our products have been exproted to USA, Australia, Indonesia, Philippines, Malaysia, Saudi Arabia, Eygpt, Russia, Uzbekistan, India, Pakistan, Kenya, Zimbabwe, South Africa, Mexico, Chile, Peru etc.our products are well received by customers.
＞＞＞ VSI Sand Making Machine Case
We Design and manufacture machines according to customer's special requirements. Also we could arrange professional engineers to the user on-site engineering and technical personnel planning site for the user to design thebest processes and program
Maybe you are interested in
_______________________
Henan Baichy Machinery Equipment Co, Ltd. is a famous Mining Machinery Manufacturer and Exporter, integrating R&D, design, sales, and aftersale services, focusing on stone crushers, powder grinding mills, mobile crushing plants &mineral processing equipment. Based on solid technology, an advanced management system & highquality products, We have grown quickly into one of the most important manufacturing bases of China's mining industry, and exported products to over 80 countries including South East Asia, Middle Asia, Africa, Middle East, widely used in global mining and construction industries.
Located in the industrial park of Jiaozuo City, Henan Province, The Factory of Henan Baichy Machinery Equipment Co, Ltd. Covers a total area of 200,000 square meters, with 15000 square meters of the standardized workshop. There are more than 200 sets of various medium and large metal processing lathes, riveting machines, welding, and assembly equipment. And there are more than 100 workers, including over 20 middle and senior technicians.
Baichy is gradually expanding its business market, depending on Its Outstanding Quality Performance and Service Support.
Baichy always adheres to the "quality assurance, sustainable development" of the enterprise purpose and "customer first, mutual benefit and win-win" as the business principle.
FAQ
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
