Linear Screen Vibration Motor Linear Vibrating Screen Sieve Screening Machine for Mining Sand, Linear Screen Classifier Price in Henan, China

It can also be specially designed according to your needs.
Applied Material
The linear vibrating screen is generally applied to screen large quantities of materials in crushing lines, such as ores, coal, sand, aggregate, gravel, limestone, granite, marble, basalt, etc.
Stone crusher is used for crushing over 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate, etc.
Different final output sizes could meet your different needs.
Working Principle

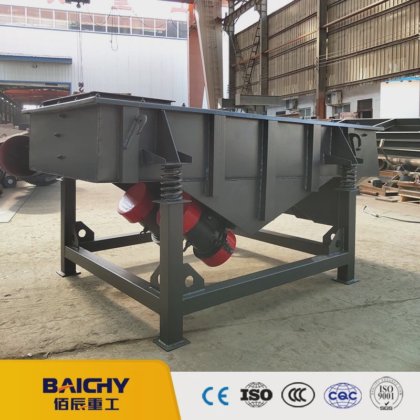

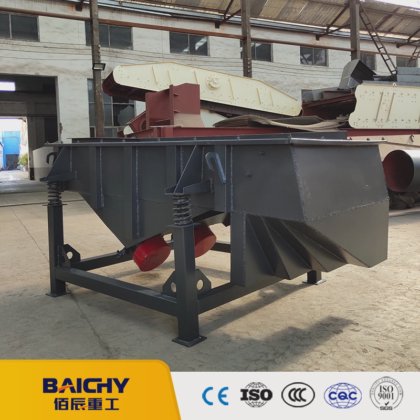

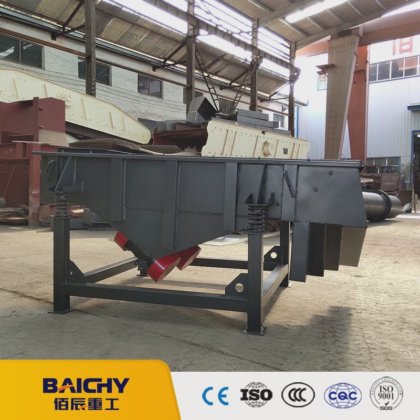

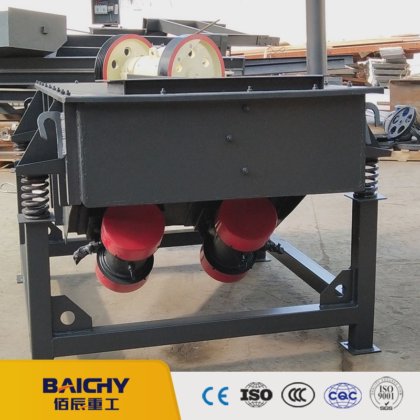

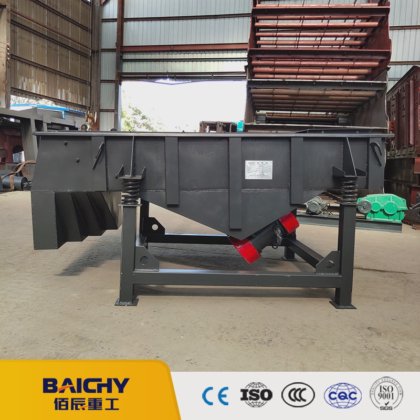

The linear vibrating screen machine uses a vibration motor as a vibration source. Materials are put into the inlet of the screen machine by the feeder evenly. The sieved materials are jumped and moved in a straight movement at the same time. So the materials are separated into different sizes through the screen. Separated materials are discharged from different outlets.
Product Parameters
Model
Screen size(mm)
Particle size (mm)
Screen slope
Double amplitude(mm) (°)
Layer
Frequency(r/min)
Power(kw)
SZF-520
500X2000
0.074-60
1°-7°
3-4.5
1-6
960
2x(0.37-0.75)
ZX-525
500X2500
2x(0.37-0.75)
ZX-1020
1000X2000
2x(0.55-1.0)
ZX-1025
1000X2500
2x(0.55-1.0)
SZF-1225
1200x2500
2x(0.75-1.5)
SZF-1230
1200x3000
2x(0.75-1.5)
SZF-1235
1200x3500
2x(1.5-2.0)
SZF-1530
1500x3000
2x(2.0-2.2)
SZF-1535
1500x3500
2x(2.0-2.2)
How to use the linear vibrating screen?
1. The motor should be fastened on the installation surface, and the installation surface must be smooth and flat.
2. Try to start the two vibration motors, and require the two vibration motors to run at the same speed in opposite directions. If it runs in the same direction, just replace the power wiring of one of the vibration motors.
3. In the early stage of operation, check the anchor bolts at least once a day to prevent loosening.
4. Regularly check whether the coarse mesh, fine mesh, and spring are fatigued and damaged and whether various parts of the fuselage are damaged due to vibration, and whether the parts that need to be lubricated must be lubricated.
Product Advantage
1. Low energy consumption, low noise, and long service life.
2. Screening of high precision, screen up to 0.074mm.
3. Fully enclosed structure with little dust spilling. It can be used for automatic production lines.
4. It can be customized according to customer requirements, ranging in size from 200 to 2,000 mm wide to handle various materials.
Company Profile
Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standardized workshops. There are more than 200 sets of various large and medium-sized metal processing lathes, riveting machines, welding equipment, and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focused on 4 series of products: stone crusher machines, sand-making equipment, powder grinding mills, mineral processing equipment, and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
Through the international mining machinery exhibitions, We have demonstrated our professional equipment, technology, and thoughtful service to customers from all over the world.
Baichy always adheres to the "quality assurance, sustainable development" of the enterprise purpose and "customer first, mutual benefit and win-win" as the business principle.
Packaging & Shipping
FAQ
1. Are you a manufacturing or trading company?
We are a factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at the lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already built many mining projects in China & Overseas.
