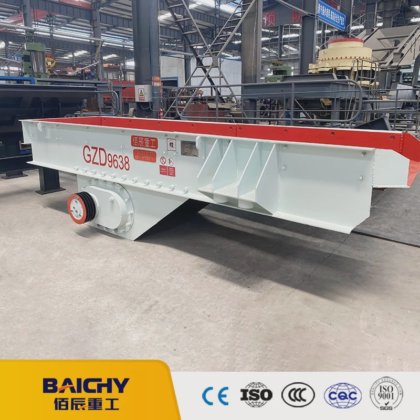

Factory Price Mining Stone Vibrating Feeder Machine, Linear Sand Stone Vibrating Hopper Feeder, Zsw Series Vibrating Feeder in Henan, China

The vibrating feeder is used for crushing over 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate, etc.
Different final output sizes could meet your different needs.
Working Principle
The vibrating feeder is composed of a feeding trough, a vibrator, a spring support, and a transmission device.
It generates a huge linear exciting force under the drive of the motor, which makes the machine's body vibrate.
Under this vibration, the material moves forward on the trough and is transported into the crusher.
When the materials pass through the sieve bars on the tank body, the larger materials directly enter the crusher, and the smaller materials fall from the gaps in the sieve bars, which also achieves some screening effects and improves work efficiency.
Product Parameters
Model
Trough
size(mm)
Max feed
size(mm)
Capacity
(t/h)
Motor Power
(kw)
Overall dimension
L*W*H(mm)
ZSW-650*2500
650*2500
300
50-80
5.5
2500*1360*780
ZSW-850*3000
850*3000
400
80-120
7.5
3110*1800*1600
ZSW-960*3800
950*3800
500
120-210
11
3850*1950*1630
ZSW-1100*4200
1100*4200
580
200-430
15
4400*2050*1660
ZSW-1100*4900
1100*4900
580
280-500
15
5200*2050*1700
ZSW-1300*4900
1300*4900
650
450-600
22
5200*2350*1750
This series of vibrating feeders of Baichy Machinery is reliable in operation, low in noise, low in energy consumption, free from flushing, long in life, convenient in maintenance, light in weight, small in size, convenient in equipment adjustment and installation, and good in overall performance. When the closed structure body is used, dust pollution can be prevented.
Product Advantage
1. Low maintenance cost
There are many wear-resistant parts, all of which are made of high-quality steel. Even if it is used for a long time, the wear and tear of the machine are very small, so you can use it with confidence.
2. High working efficiency
Our vibrating feeder can transport large volumes of material with a capacity of 30-600 t/h. And the feeding is uniform and the continuous performance is good.
3. Stable structure
Special grid design and adjustable grid gap can prevent material from clogging. In addition to this, it has a strong load-bearing structure that can withstand bulky materials.
4. Less environmental pollution
Baichen vibrating feeder has low noise, low energy consumption, no flushing phenomenon, good comprehensive performance, and adopts a closed structure to reduce dust pollution
Company Profile
Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standardized workshops. There are more than 200 sets of various large and medium-sized metal processing lathes, riveting machines, welding equipment, and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focused on 4 series of products: stone crusher machines, sand-making equipment, powder grinding mills, mineral processing equipment, and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
Through the international mining machinery exhibitions, We have demonstrated our professional equipment, technology, and thoughtful service to customers from all over the world.
Baichy always adheres to the "quality assurance, sustainable development" of the enterprise purpose and "customer first, mutual benefit and win-win" as the business principle.
Packaging & Shipping
FAQ
1. Are you a manufacturing or trading company?
We are a factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at the lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already built many mining projects in China & Overseas.
