LC-340 CCD Automatic Roll to Roll Screen Printer/Printing Machine in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 12 Months
- Style
- Screen-process Printing Press
- Structure
- Stop-cylinder Press
- Color & page
- Multi-Colour Printing Press
- Application
- Packaging Printing
- Screen frame size
- 700X850mm
- Precision
- 0.035-0.05mm
- Printing speed
- 750m/H
- Dimensions
- 6500X1050X1700mm
- Transport package
- Wooden Case
- Specification
- 4600kg
- Production capacity
- 10 Sets Per Month
- Category
- Packaging Machinery in China
- Subcategory
- Screen printer
- Subcategory 2
- Printing machinery
- Subcategory 3
- Packaging & printing
- Listing ID
- 86578927
Description
Product Description

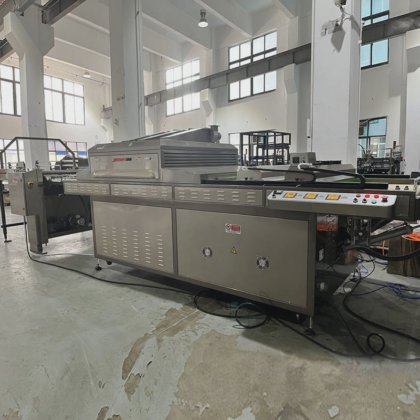

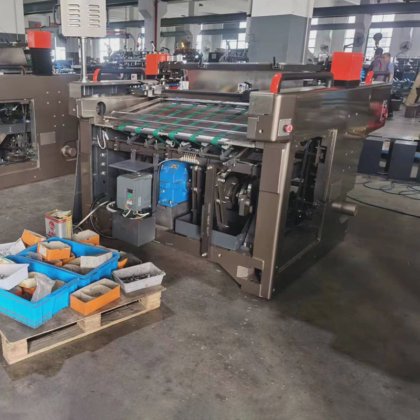

LC450UV Roll To Roll Screen Printing Machine
Optical Registering Screen printing machine, alignment precision within 0.02mm, superior performance, production yield greatly improved.The machine has strong structure, light weight, imported servo and transmission motor plus precise steering and positioning, stable operation quiet and more smooth and fast. The main component of printing is cast and formed, running smoothly.Machine printing stand casting column plus precision linear guide rail lock device design, printing ink layer evenly.
Product Parameters
Model
LC450SP-RS
LC470SP-RS
LC570SP-RS
Screen frame size
700x850mm
700x1150mm
850x1150mm
Max feeding length
50-410mm
50-410mm
50-510mm
Precision
0.035-0.05mm
0.035-0.05mm
0.035-0.05mm
Max printing size
400x500mm
400x500mm
500x700mm
Printing speed
750m/h
750m/h
950m/h
Dimensions
