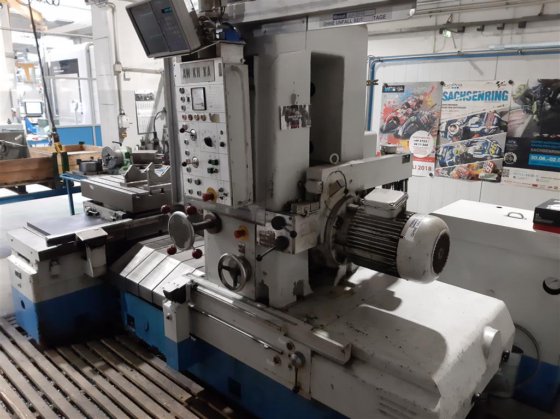

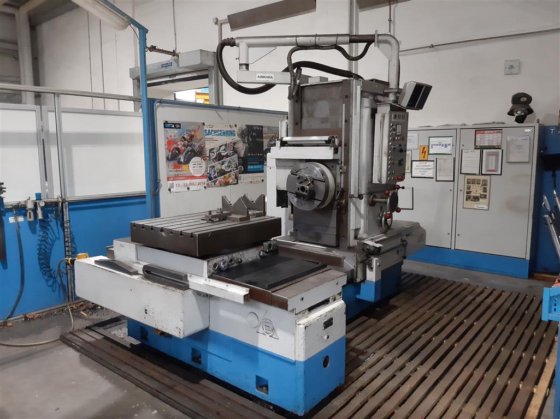

1971 COLLET-ENGELHARTD Minor in Leipzig, Saxony, Germany
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 1971
- Stock number
- 0200510
- Type of control
- conventional
- Freight basis
- EXW, free on truck unpacked
- Storage location
- Leipzig 5
- Bore capacity in steel (diameter)
- mm
- X-travel
- mm
- Y-travel
- mm
- Max. diameter of face turning
- ca. Ø 900 mm
- Revolution per minute
- Planscheibe: 8 - 190 / 12 step U/min
- Feed steps
- Planscheibe: 0,03 - 3 / 17 step
- Rapid traverse
- alle Bewegungen: 2000 / 4000 m/min
- Tool taper
- der Arbeitsspindel: ISO 50 / SK50
- Table clamping surface
- 700 x 800
- Table rotating
- 360° Grad
- Drill table adjustment
- quer: 800 mm
- Max. table load
- 1500 kg
- Total power requirement
- ca. 11,0 kW
- Weight of the machine ca.
- 7800 kg
- Dimension machine approx.lxwxh
- 3,0 x 2,0 x 2,6 m
- Dimensions electric cabinet
- 1800 x 400 x 1950 mm
- Category
- Boring Mills in Germany
- Subcategory
- Machinery
- Subcategory 2
- Drilling and milling m/c
- Subcategory 3
- Boring mills, machining center
- Listing ID
- 86220668
Description
Ø of the face plate 420mm
Movement of the face slide 180mm
largest Ø during facing approx. 900mm
Longitudinal movement of the column 700mm
Vertical movement of the headstock 700mm
Feed drive of column, headstock and clamping table:
-for spindle operation=0,20 - 10 mm/rev with 34 speeds
-for operation with faceplate= 0,16 - 16 mm/rev with 17 speeds
Equipment:
optical fine measuring device/measuring system Heidenhain for axes X/Y/Z/C-table
hydraulics
machine feet/footplates
control panel with boom
