Building Material Qt4-15 Block Forming Machine with Concrete Mixer Block Making in Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- CE, ISO, SGS
- Customized
- Customized
- Automatic grade
- Automatic
- Description
- Qt4-15 Hydraulic Block Making Machine
- Weight
- 5.4t
- Molding area
- 1016*600mm
- Water consumption
- 5-6t
- Block type
- Hollow Soild Paving Block
- Standard hollow block
- 400*200*200mm
- Mold period
- 15 Seconds
- The size of pallet
- 960*550*20mnm
- Mixer model
- Js500 Concrete Mixer
- Vibration force
- 40-50kn
- Factory area
- 1000-1500m2
- Pallet number
- 1500 PCS
- Rated pressure
- 21MPa
- Labor
- 5-7 Workers
- Transport package
- Nude in Container/LCL
- Specification
- 3500(L)*1700(W)*2830(H)mm
- Hs code
- 8474802000
- Production capacity
- 500PCS/Month
- Category
- Concrete Mixers in China
- Subcategory
- Brick making machine
- Subcategory 2
- Automatic brick making machine
- Subcategory 3
- Building material making machinery
- Subcategory 4
- Manufacturing & processing machinery
- Listing ID
- 86053422
Description

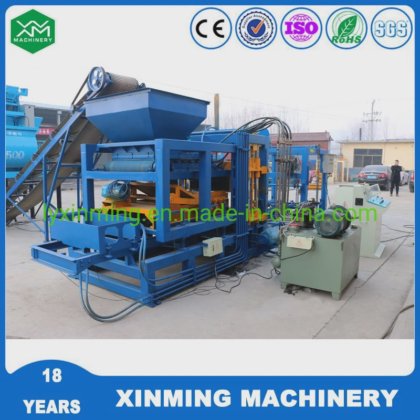

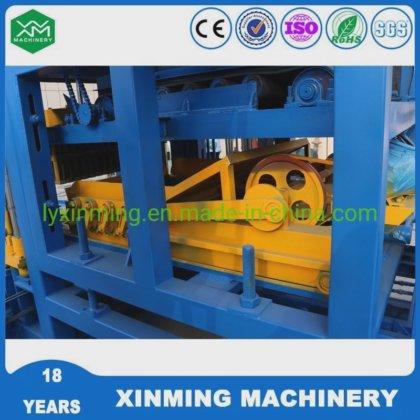

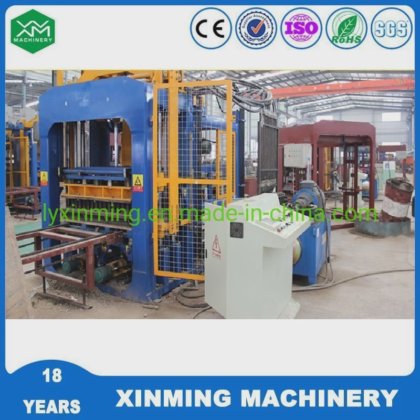

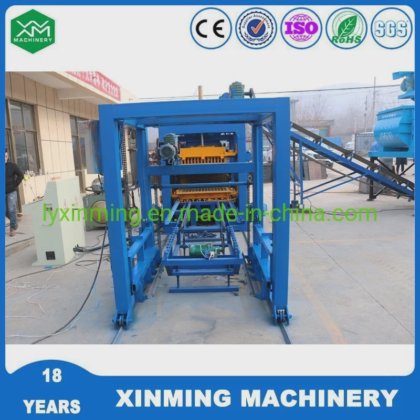

QT4-15 Floor Tile Machine Concrete Mixer Block Making Brick Making Machine
QT4-15 Automatic concrete hollow block making machine adopt Germany Advantest Technology. It is designed to match the various customer requirements, such as special-shape cement products, hollow bricks, colorful paving bricks, curb stones and solid bricks, etc...And with features of easy operation, big capacity, high quality, high stability, low running costs and so on.
QT4-15 concrete multi block making machine line is reasonable in structure and advanced in technology. It uses programmable logic controller (PLC) as the main control component of the system. It integrates mechanical, micro-electronic and hydraulic technologies. It can realize step-by-step or automatic control according to the whole process flow of block production. It realizes the automation of feeding pallets, distributing material, pressing vibration, demoulding and brick conveying.
