MDF Paper/PVC Laminate/Wrapping Machine Woodworking Machinery in Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Classification
- Cold Laminating Machine
- Application
- Film Material
- Driven type
- Electric
- Automatic grade
- Semi-Automatic
- Membrane material
- Paper,PVC Film
- Plastic film mulching modes
- Cold Laminating
- Performance
- Anti Wrinkle
- Net weight
- 1800kgs
- Glue type
- Solvent Glue, Water Base White Glue
- Based panel
- MDF,Plywood Particle Board Aluminum Panel,etc
- Working speed
- 1-15m/Min
- Transport package
- High Quality PE Film
- Specification
- 6000*2300*1600mm
- Hs code
- 8477409000
- Production capacity
- 150set/Year
- Category
- Packaging Machinery in China
- Subcategory
- Packing machinery
- Subcategory 2
- Laminating machine
- Subcategory 3
- Packaging & printing
- Subcategory 4
- Cold laminating machine
- Listing ID
- 85923754
Description
Product Description

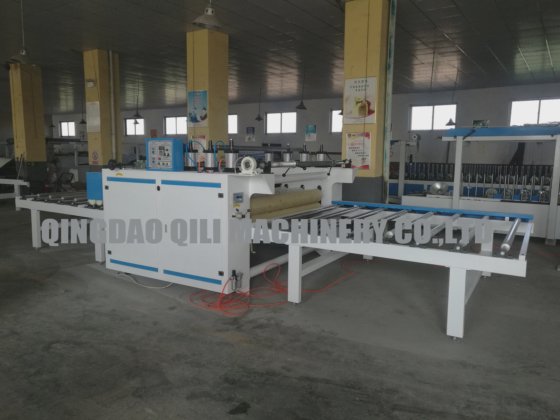

Paper and PVC laminating machine
This type machine is the best choice for laminate decorative material (PVC,PE, wood grain paper etc.)on the surface of the flat board(MDF board,density board, particle board, aluminum panel,steel panel,PVC panel equipped with dust-cleaning part, glue coating part, cold and hot press part,can finish dust-cleaning, glue coating, hot & cold pressure, material sticking.The final product has a flat surface without wrinkles
Technical parameters
Item
QL1350TZ-C
Pressing roller control
air cylinder(when change thickness of the panel,need to adjust the air cylinder one by one)
Main body of the machine
Made by 16mm steel plate
Voltage
380V/50HZ
Rated power
6KW
Glue coating roller
φ190x1350mm( silicone )
Heating steel Pressing roller
φ190x1350mmx1PCS
Rubber pressing roller
φ190x1850mmx2PCS
Max processing thickness
50mm
Max.work width
1350mm
working speed
$7,500 USD
