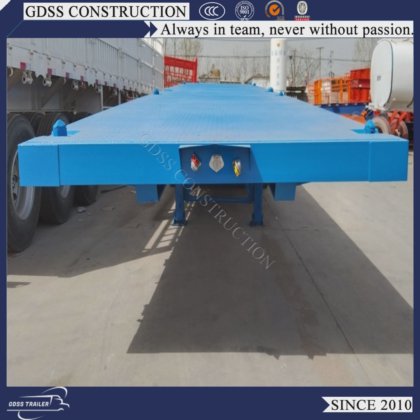

Tri-Axle Loading 40FT Container Flatbed Semi Trailer with Twist Locks Installed in Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- One Year
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Load capacity
- 30T
- Certification
- ISO9001, CCC, ISO/TS16949
- Wheel base
- 8000-9000mm
- Tread
- 2240mm
- Types of suspension systems
- Cross Arm Type
- Shape
- Flatbed
- Axle number
- 3
- Tire number
- 12
- Self-dumping
- Not Self-dumping
- Abs anti-lock braking system
- ABS Anti-lock Braking System
- Material
- Steel
- Trailer type
- Container Semi Trailer
- Size
- 40FT
- Axles
- 3 Axles, Double Wheeled
- Tire
- 12 Sets of 10r22.5
- Suspension
- Steel Mechanical Suspension
- Kindpin size
- 2 Inches
- Twist lock
- 8 Sets
- Transport package
- No Packing
- Specification
- 40FT
- Hs code
- 87163990
- Production capacity
- 50 Units/Month
- Category
- Flatbed Trailers in China
- Subcategory
- Trailer
- Subcategory 2
- Truck trailer
- Subcategory 3
- Transportation
- Listing ID
- 85854199
Description
Product Parameters
Model
GC9360TJZG
Dimension
Overall length: 12200mm
Overall width: 2500 mm
Overall height: 1500 mm
Loading capacity: a 40ft container or 2x20ft containers.
King pin size: 2''.
Chassis
Main beam: material of Q345B, welded by automatic submerged-arc processes. Constructed of original main beams electrically welded with corresponding extra strong cross members, material of Q345B.
Diamond plate floor with 8 sets of twist locks installed.
Axle
13T model with double tyres formation.
3 sets.
Suspension
Independent stamping steel rigid suspension, with a set of tri-axle leaf springs.
US type.
Tyre & wheel rim
Tyre: 11R22.5, 12 pcs per trailer, uncovered type.
Wheel size: 8.25*22.5, 12 pcs per trailer, assembled with tyres.
Painting
