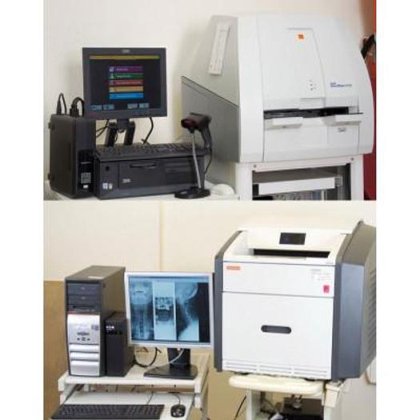

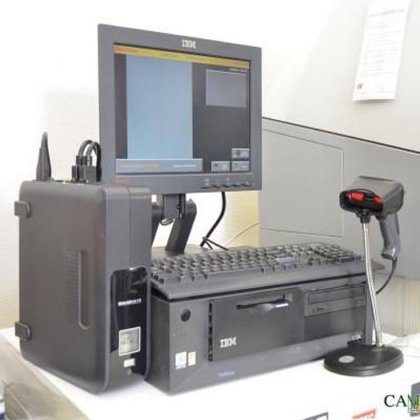

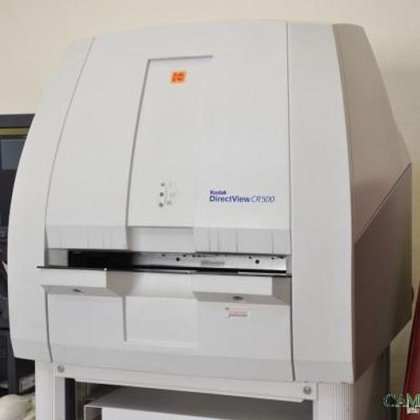

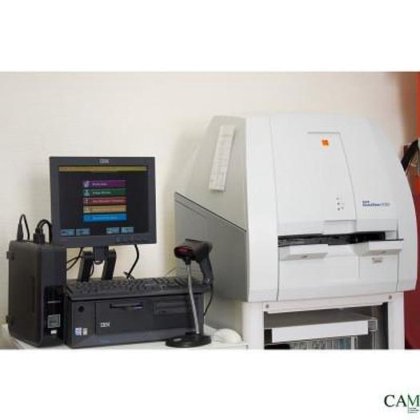

KODAK DIRECTVIEW CR500 DIGITIZING SYSTEM WITH PROCESSING CONSOLE AND REPROGRAPHER in Montreuil, Île-de-France, France
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- 5950
- Duration for first print
- 100 seconds
- Up to 70 films per hour
- 35 x 43 cm
- Up to 110 films per hour
- 20 x 25 cm
- Height
- 75,6 cm
- Width
- 62,6 cm
- Depth
- 64,9 cm
- Weight
- 79 kg
- Temperature
- from 15 to 33°C
- Humidity
- 20 to 80% RH non-condensing
- Magnetic field
- < 50 Gauss
- Altitude
- from -30 to 3,000 m
- Duration for the first impression
- 100 seconds
- Category
- Medical Imaging in France
- Subcategory
- Scanning system
- Subcategory 2
- Radiology, ct and mri
- Listing ID
- 85339284
Description
WITH SET OF 6 CASSETTES (2X 18X24, 2 OF 24X30 / 2 OF 35X43)
An innovation of legendary quality

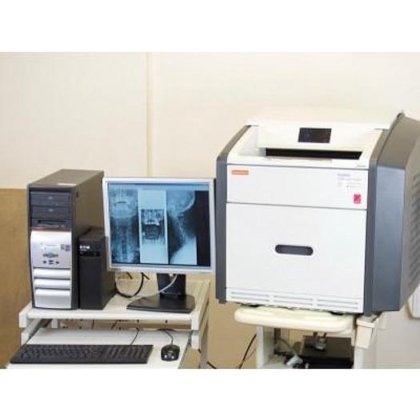

The CARESTREAM DRYVIEW 5950 laser imaging system combines cost savings and high-quality diagnostic image performance. Based on DRYVIEW laser imaging technology, it can be used on the desk and integrate mammography options.
Compatible with: Computerized Radiology (CR), Digital Radiography (DR), Magnetic Resonance Imaging (MRI), Computerized Tomography (CT), Ultrasonic Mammography, CR and full-field digital.
High-resolution and versatile laser reprograph for mammography and general radiology, powerful despite its small footprint.
High-quality laser imaging
High-resolution laser imaging, 508 pixels per inch
Auto Image Quality Control technology automatically calibrates film and imager settings based on user preferences.
Intuitive use

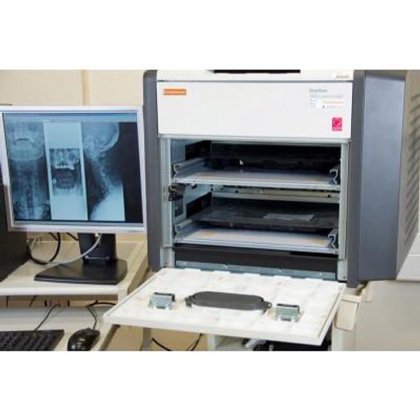

DRYVIEW Daylight Loading Cartridges allow film to be loaded quickly and easily under normal lighting conditions.
This innovative film loading design allows two sizes to be available on demand.
The user interface makes it very easy to use and keeps training time to a minimum.
Low cost of ownership
Its proven reliability contributes to its productivity and affordability.
DRYVIEW technology does not use thermal print heads and does not require any daily or weekly maintenance of the heads or the film transport rollers.
The integrated web portal allows you to view the status and performance data of the imager from any workstation connected to your network.
Integrated mammography functions
No additional hardware or software is required to print high-quality, high-resolution images from a full-field or CR digital mammography system.
Optimized mammography features include user-selectable test configurations, as well as adjustment of key parameters and values for graphical tracings.
Technology
Photo-thermography (laser without chemistry)
DRYVIEW laser imaging quality
Pure laser technology
508 pixels per inch
Laser point size 50 microns
14-bit pixel depth architecture
Flow rate
Dimensions
Ambient conditions
DRYVIEW Laser Imaging Film
Blue or transparent polyester base 0.178 mm thick
Film loadable in daylight (box of 125 films)
Very long archiving life (more than 100 years) for critical applications (oncology, mammography, pediatrics, etc.)
DRYVIEW Laser Mammography Imaging Film
Very long archiving life (more than 100 years)
Allows images with higher Dmax
3.6 Dmax and DVM movie
4.0 DMax with DVM+ film
Compatible movie formats
The DRYVIEW 5950 laser imager accepts the following film formats:
35 x 43 cm
35 x 35 cm
28 x 35 cm
25 x 30 cm
20 x 25 cm
Automatic Image Quality Control (AIQC)
No manual start-up or film calibration procedure
Ensures film-to-film consistency
Automatic without manual user intervention
Power supply
90 to 130 VAC; 50/60Hz; 9 A max
180 to 264 VAC; 50/60Hz; 4.5A max.
Network Connectivity
Integrated DICOM interface allows printing from DICOM modalities
Integration without separate DICOM server
Network connection
10/100/1000 Base-T Ethernet connection to the reprograph
Network connection via CAT 5 UTP cable with RJ-45 connector
