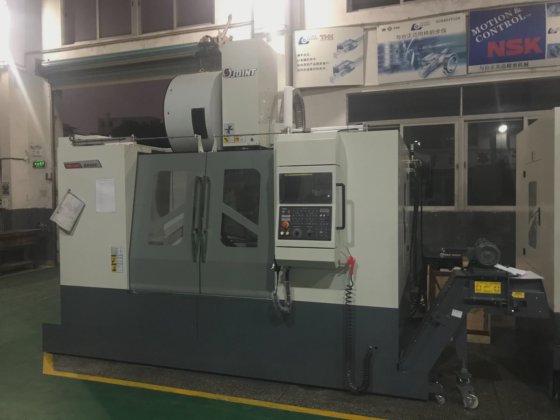

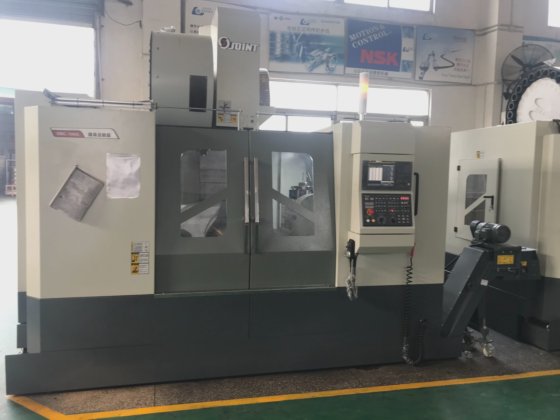

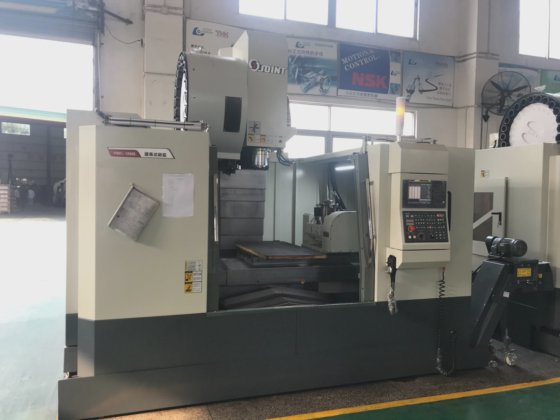

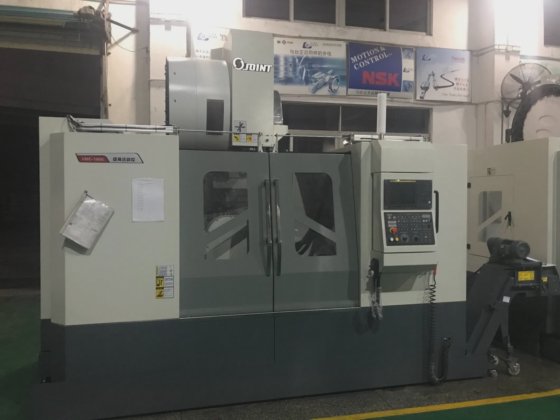

3 Axis Linear Motion Guideway CNC Milling Machine Vmc/CNC Milling Machine in Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Remote Technical Video Support
- Application
- Metal
- Process usage
- Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
- Movement method
- Linear Control
- Control method
- Semi-Closed Loop Control
- Numerical control
- CNC/MNC
- Processing precision
- 0.006mm/M
- Performance classification
- High-End CNC Machine Tools
- Certification
- CE, ISO 9001
- Table size
- 1300*600mm
- Machining
- Parts Machining
- Rotation speed
- 8000
- Spindle taper
- Bt40-150
- X axis travel
- 1000mm
- Y axis travel
- 600mm
- Z axis travel
- 600mm
- Distance between spindle and work table
- 70-670mm
- Spindle power
- 11kw
- Three axis type
- Two Axis Linear Guide Way, One Ball Way
- Max tble load
- 800kgs
- T slot
- 5-18*100
- Spindle output torque
- 52.5
- X axis motor rate
- 3
- Dimension
- 3300*2670*2950mm
- Transport package
- Wooden Package
- Specification
- 3300*2670*2950mm
- Hs code
- 8457101000
- Production capacity
- 150 Sets
- Category
- Milling Machines in China
- Subcategory
- Machine tools
- Subcategory 2
- Cnc machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 85324255
Description
Introduction:
The L series machine takes fast and rigid machining as the basic design starting point, which guarantees the mass production, machining accuracy and processing efficiency of the parts.
The combination of high efficiency discharge, fast feed and high speed spindle function is modular to meet the customer's different processing needs of personalized choice;
The key parts that affect the quality of the whole machine are imported high-quality parts
For the mold and frame industry, we introduce 850L and 1270L roller wire rail models, which can meet the requirements of precision mold and frame processing through precision assembly process.
Product Characteristics:
3 axis linear motion guideway cnc milling machine vmc/cnc milling machine
1. L series machine X/Y two axis guide rail are both ball linear guide rail pair, sliding guide rail pair.
2. High rigidity construction, satisfying requirement of heavy cutting under the rapid operation of the machine tool.
3.
