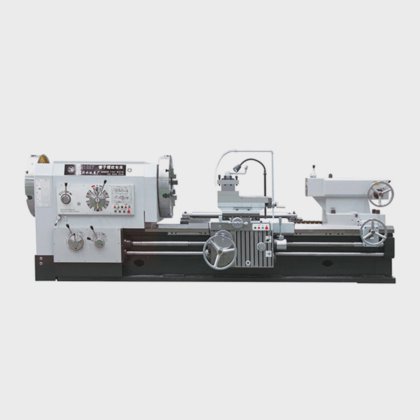

Yishui Q1325c and Q1327c Precision Pipe Threading Lathe Machine in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 1 Year
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Processing accessory
- Conventional
- Guide rail
- Horizontal Guide Rail
- Tool holder
- Single-tool Holder CNC Lathe
- Power source
- Electric
- Controlling mode
- Artificial
- Automatic grade
- Manual
- Setting mode
- Table
- Precision
- High Precision
- Certification
- CE
- Swing over cross slide
- 480/610 mm
- Distance between centers
- 1500/3000 mm
- Pipe threading range
- 50-250 / 50-270 / 130-270
- Guideway width
- 600 755 mm
- Max. load capacity
- 4 6t
- Spindle bore
- 255/280 mm
- Spindle speed steps
- Vf.4 Steps / Fwd. 12 Steps
- Spindle speed range
- 20-420 16-380 Rpm
- Chuck
- 680mm 4-Jaw Electric / 800mm 4-Jaw Electric
- Turret/tool post
- Manual 4 Position
- Tool shank size
- 32X32 mm
- X axis travel
- 420/520 mm
- Z axis travel
- 1250/2750 1350/2850
- X axis feed grade/range
- 22/0.02-0.45 40/0.05-1.5
- Z axis feed grade/range
- 26/0.07-1.33 40/0.1-3
- Transport package
- Sea Packing
- Specification
- Swing over bed: 800/1000mm
- Category
- Lathes in China
- Subcategory
- Machine tools
- Subcategory 2
- Manufacturing & processing machinery
- Listing ID
- 85242028
Description
Product Introduction
Product description:
YISHUI conventional Pipe threading lathe Q13 series lathe is mainly used for turning the internal and external threads including metric and inch thread, as well as having all the common functions of normal engine lathe such as processing the inner bore, end face of shafts and disks, this series is equipped with taper guide bar device which enables this series to process taper thread, this series is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, for processing and repairing drilling pipe, drilling rod, thread coupling and so on.
Characteristic
Big spindle bore and double chuck to ensure process big diameter pipe.
Integral machine bed adopts high strength iron to realize.
Ultrasonic frequency quenched guide-ways ensure good wear-resistance.
Equipped with taper guide bar device this enables the machine to process taper threads.
Item Unit Q1325C Q1327C Q1327
