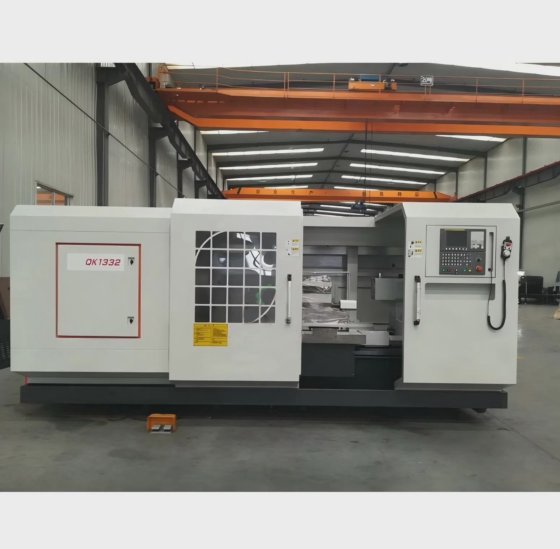

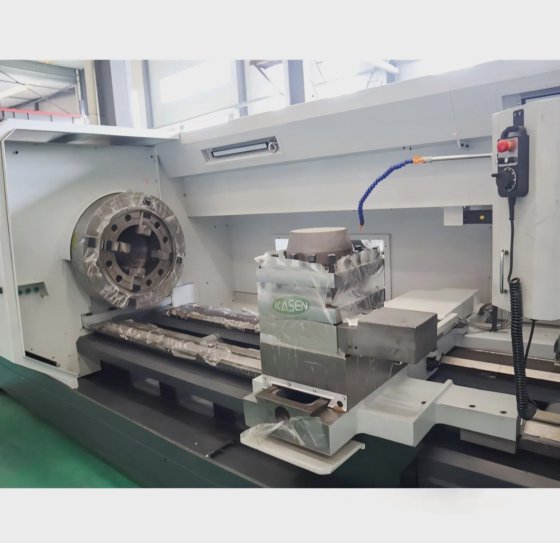

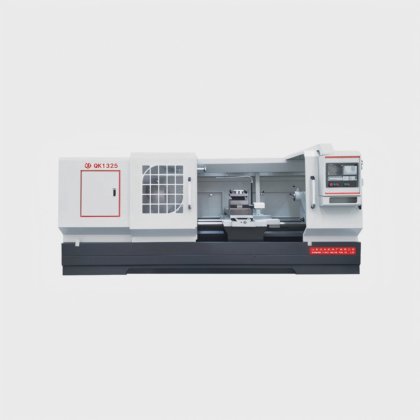

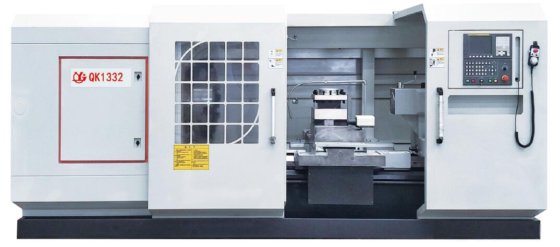

Advanced CNC Pipe Threading Lathe for Precision Engineering in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 1 Year
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Processing accessory
- Chuck CNC Lathe
- Guide rail
- Horizontal Guide Rail
- Tool holder
- Single-tool Holder CNC Lathe
- Power source
- Electric
- Controlling mode
- CNC
- Automatic grade
- Automatic
- Setting mode
- Table
- Precision
- High Precision
- Certification
- CE
- Swing over cross slide
- 340/520mm
- Distance between centers
- 1000-6000mm
- Guideway width
- 50-220mm
- Max. load capacity
- 550mm
- Spindle bore
- 3t
- Spindle bore taper
- 206mm
- Spindle nose type
- Vf.4 Steps Hyd 4 Steps
- Spindle speed range
- 20-600rpm
- Chuck
- 500 3-Jaw Manual
- Turret/tool post
- Nc Turret 4 Position
- Tool shank size
- 32X32mm
- X axis travel
- 320/420mm
- Z axis travel
- 1000-6000mm
- X axis rapid traverse
- 4000mm/Min
- Z axis rapid traverse
- 6000mm/Min
- Transport package
- Sea Packing
- Specification
- Swing over bed: 630/800 mm
- Hs code
- 84580000
- Production capacity
- Subject to Order
- Category
- Lathes in China
- Subcategory
- Machine tools
- Subcategory 2
- Automatic lathe
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 85241206
Description
Product Introduction
Product description:
This series YISHUI CNC Pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch, module, DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.
Characteristic

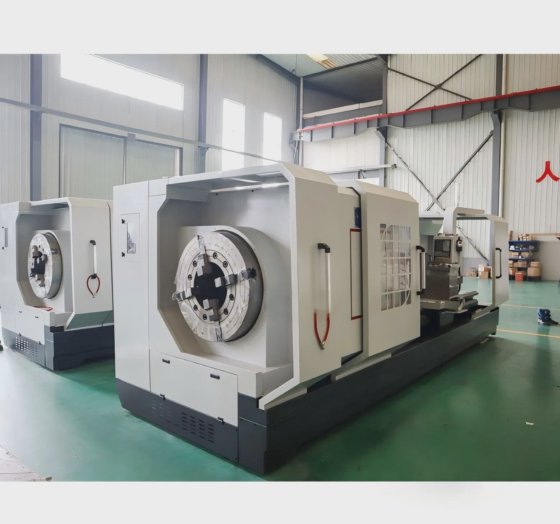

1.Big spindle bore and double chuck to ensure process big diameter pipe.
2.One-piece bed adopts high strength iron to ensure rigidity and precision.
3.Ultrasonic frequency quenched guide-ways ensure good wear-resistance.

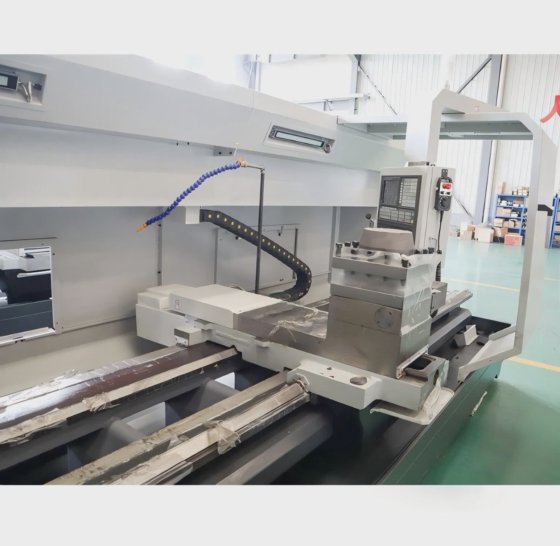

4.Carriage and guide way contact surface use Turcite B to maintain accuracy.Stander Configuration
Stander Configuration
1. Siemens controller
2. NC turret
3.
