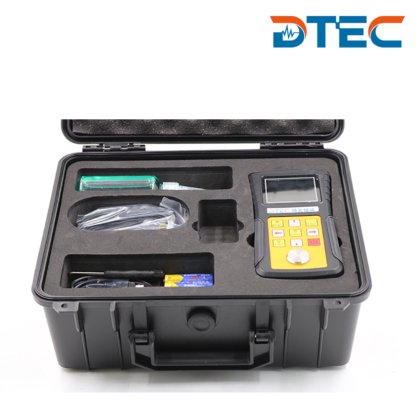

Ultrasonic Thickness Gauge in Beijing, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Quality certified
- CE,ISO,Ghost
- Packing weight
- 1.5KG
- Dimension
- 31.5x24.5x8.5cm(LxWxH)
- Package type
- Maker's Standard Export Wooden Case
- Courier
- DHL/TNT/FedEx/UPS/EMS/Shipping Agent
- Payment term
- TT100%/Private Bank Account/L/C/Paypal/Western Union
- Measuring range
- 0.75～300mm (in Steel)
- Sound velocity range
- 1000~9999 m/s.
- Resolution
- 0.1/0.01mm(selectable)
- Accuracy
- ±（0.5%Thickness+0.04）mm, depends on materials and conditions
- Measurement unit
- Metric/Imperial unit selectable
- Displaying mode
- 4.5 digits LCD with EL backlight
- Memory
- 20 files (up to 99 values for each file)
- Power supply
- Two “AA” size, 1.5 volt alkaline batteries. 100 hours typical working time (EL backlight off).
- Data output
- USB1.1 port
- Packing weight
- 1.5 KG
- Material
- Sound Velocity
- In/us
- m/s
- Category
- Materials Testing in China
- Subcategory
- Measuring equipment
- Subcategory 2
- Ultrasonic thickness gauge
- Listing ID
- 84940322
Description

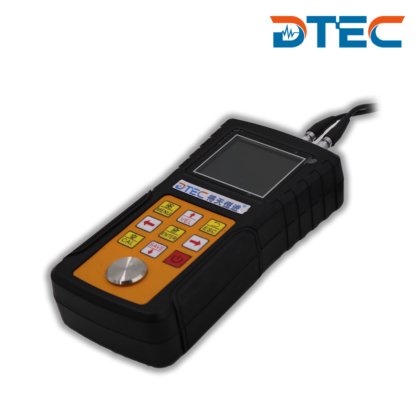

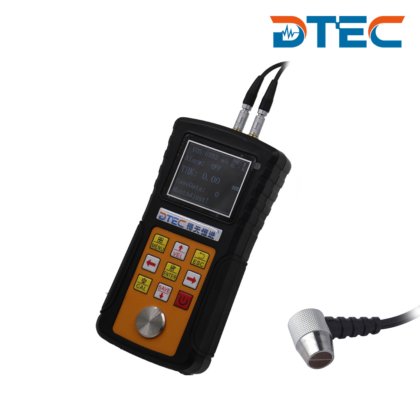

MT220 is digital ultrasonic thickness gauge with high cost effective, It is capable of measuring the thickness of various materials with accuracy as high as 0.01mm, or 0.001 inches, and equips with USB1.1 communication interface, which is suitable to match with optional data pro software(support the 64 system) to deal with memory data on PC.
►Capable of performing measurements on a wide range of material;

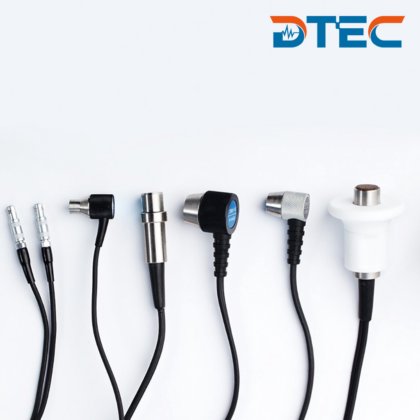

►Four selectable probes available for special application;
►Probe-Zero function, Sound-Velocity-Calibration function;
►Selectable for measuring units(Metric/Imperial) and indicating resolution(0.1/0.01mm)；
►Two-Point Calibration function;
►Two working modes: Single point mode and Scan mode;
►Upper and lower limit can be pre-set. It will alarm automatically when the result value exceeding the limit;
►Four measurements readings per second for single point measurement, and ten per second for Scan Mode;
►Coupling status indicator showing the coupling status;
