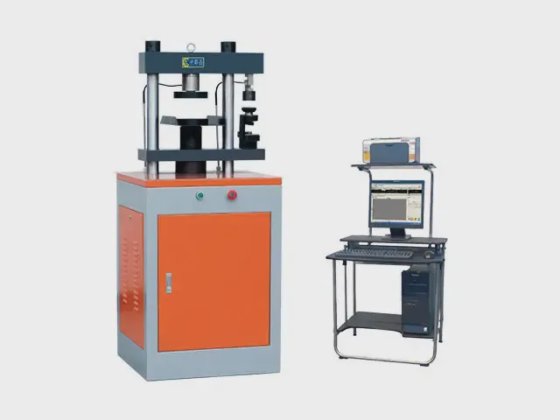

Automatic compression testing machine in Jinan, Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Test compression force
- 300 kN
- Measure scale
- 2%-100%FS
- Accuracy class
- Class 1
- Loading speed
- 2.4kN/S±200N/S
- Accuracy of loading speed
- ±5%
- Pressure plate space(mm)
- 260
- Top and bottom pressure plate dimension (mm)
- Φ155
- Efficient stroke of lead screw(mm)
- 100
- Column clear space(mm)
- 300
- Motor power(kw)
- 0.75
- Load frame size（l×w×h）(mm)
- 600×560×1500
- Weight (kg)
- 400
- Category
- Materials Testing in China
- Subcategory
- Compression testing machine
- Listing ID
- 84807098
Description
It can be used in the compression and bending strength testing of cement mortar.
Control Method of testing rate: Electro-hydraulic closed-loop control.
Main Function and Usage
The model YAW-300D can be used in the compression strength testing of cement mortar
The model YAW-300E can be used in the compression and bending strength of cement mortar.
Control Method of Testing Rate: Electro-hydraulic closed-loop control.
Main Specifications and Technical Parameter
The Main interface
The test methods can be choosen
The test report
