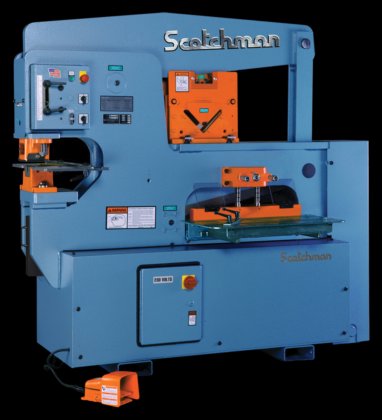

90 Ton Ironworker 9012-24M in Sutton, MA, USA
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- One round punch & die
- max. diameter 1-1/4″
- Punching capacity
- 90 ton 1-1/8″ in 1″
- Special tooling
- 4″ Max. Dia.
- Throat depth
- 12″
- Flat bar shear
- 24″ Length 1″ x 8″ 3/4″ x 12″ 1/2″ x 16″ 1/4″ x 24″
- Saber blade (optional)
- 1/2″ x 22″ 3/8″ x 24″
- Angle shear 90 degree
- 6″ x 6″ x 1/2″
- Angle shear 45 degree w/tool w/bar shear
- 3″ x 3″ x 3/8″ 4″ x 4″ x 1/2″
- Brake 12″
- 50 ton
- Brake 24″
- 40 ton
- Open end brake
- Max. 1/4″ x 5″ [Flat or Angle Iron]
- Pipe notcher schedule 40
- 3/4″, 1″, 1-1/4″, 1-1/2″, 2″
- Rectangle notcher
- 2″ x 2-1/2″ x 3/8″
- 90 degree v-notcher
- 6″ x 6″ x 5/16″
- Channel shear
- 2″ to 6″ adj.
- Unistrut shear
- Samples Required
- Rod shear round (max.) square (max.)
- 9 Cavity – 1/4″ to 1-1/4″ 1 Cavity – 1/4″ to 1″
- Square tube shear
- 1/2″ to 2″ 12 gauge
- Picket tool
- 1/2″, 3/4″ & 1″ 16 gauge
- Weld coupon bender (max.)
- 2″ wide x 3/8″
- Offset die holder
- Max. 40 ton
- Strokes per minute in light material
- 45 spm [Punch Station]
- Strokes per minute in heavy material
- 24 spm [Punch Station]
- Hydraulics
- 2,600 psi
- Motor standard
- 5 hp 208/230/460, 380/575v; 3 ph
- Motor optional
- 5 hp 220v, 1ph
- Dimensions
- L: 76-3/4″ W: 31″ H: 71-1/2″
- Shipping weight (may vary)
- 4,204 lbs.
- Category
- Ironworkers in USA
- Subcategory
- Iron worker
- Listing ID
- 84671873
Description
Single Operator
Single Operator, 4 Stations
90 Ton punch station
Keyed punch ram for safety
Punch gauging table with fence and scale
Die holder complete with 2″ die insert
Punch nut with wrench & stripper
Jog control
Adjustable electric stroke control with scale
Electric remote foot pedal
Angle shear
Flat bar shear with 4-way reversible blade
Shear table with miter fence
Tool table work area
Slug receptacle
Two-stage hydraulic pump
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
All guards necessary to comply with ANSI B11.5 safety standards
Forklift accommodations
Made in USA
