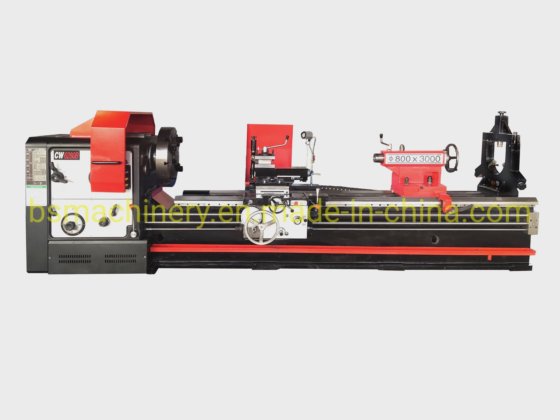

Conventional Parallel Metal Lathe for Precision Cutting and Turning Horizontal Lathe Machine Tool with 2 Axis Dro Digital Readout Torno in Henan, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Good After Sales Service
- Processing accessory
- Metal Parts
- Guide rail
- Horizontal Guide Rail
- Tool holder
- Vertical 4 Position Tool Post
- Power source
- Mechanical Drive
- Controlling mode
- Artificial
- Automatic grade
- Semiautomatic
- Setting mode
- Floor-type
- Precision
- High Precision
- Certification
- CE, ISO 9001
- Transport package
- Export Standard Package
- Specification
- 5100x2100x2150mm
- Hs code
- 8458190000
- Production capacity
- 300 Sets Per Year
- Category
- Lathes in China
- Subcategory
- Machine tools
- Subcategory 2
- Manufacturing & processing machinery
- Listing ID
- 83966212
Description
Product Description
This series of horiozntal lathe machine tools are mainly used to undertake all kinds of turning work, it can turn all kinds of parts of the end,cylindrical, bore and metric thread, inch thread, modulus thread, diameter thread. Can be used on the turret to cut the taper alone, but also can be used on the knife with the vertical feed with the long taper motor. In addition can also bear the drilling, nesting, boring and other processes. The machine power, rigidity, and can use carbide cutting tools for thread cutting, to process a variety of ferrous metals and non-ferrous metals.
Product Parameters
Technical items Model
CW6163 /CW6263
CW6180Q /CW6280Q
CW6180B /CW6280B
CW61110Q /CW62110Q
CW61125Q/CW62125Q
CW61125B
CW61160B
CW61160
CW61200
CW61250
Swing diameter over bed
630mm
800mm
800mm
1100mm
1250mm
1250mm
1600mm
1600mm
2000mm
