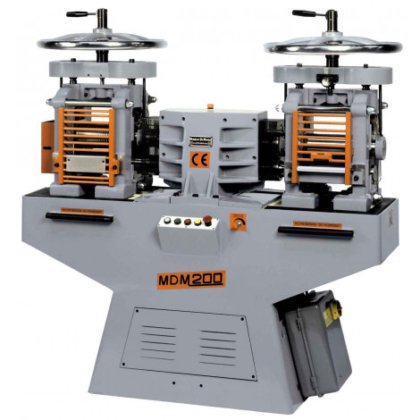

MDM GL 200 Rolling Mill in Gerenzano, Lombardy, Italy

GL 200 Rolling Mill Plate and wire rolling mill The structure of the rolling mill is a sturdy electro-welded steel frame with double coat baking painting. The cylinders uprights are obtained from spheroidal cast iron. The cylinders are made of special alloy steel with a grinded surface hardness 64 HRC (plate cylinders), 61 HRC (wire cylinders). On request it is possible to supply plate cylinders with mirror finish, hard chromium plating, internal water-cooling system with rotating joints. The bearings are mounted on mobile guides, they are heavy duty bronze plain bearings and are provided with automatic closed circuit pressure lubrication with oil recovery (water-cooled circuit on request ). Cylinders displacement: manual displacement by hand wheel. Cylinders drive: by means of mechanical homo-kinetic Oldham coupling. Reduction gear unit: the rolling mill have a reduction unit made of helicoidal steel gears with oil bath lubrication.
