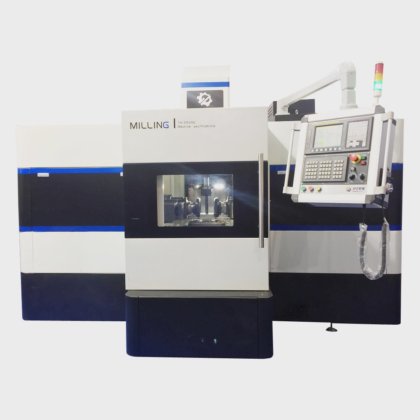

Gooda CNC Double-Head Milling Machine Flashing Machine "Running Fast" Four-Sided Small Material Processing in Dongguan, Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Excellent After Sale Service
- Object
- Tool
- Structure
- Bed type
- Milling cutter type
- Vertical Milling Cutter
- Milling cutter structure
- Indexable Type
- Controlling mode
- CNC
- Automatic grade
- Automatic
- Precision
- High Precision
- Certification
- GS, CE, RoHS, ISO 9001
- Control axis no.
- 4
- Cutting capacity
- 2*1.5mm
- Cutting width
- 20-350mm
- Cutting diameter
- 100mm
- Transport package
- Wooden/Steel Box
- Specification
- 2.7*2.7m
- Hs code
- 84596190
- 0. th-350ncg specifications
- .
- 1. no.
- Items; Name; Specifications.
- 2. 1
- Model; CNC twin headed milling machine; TH-350NCG.
- 3. 2
- Cutting capacity; Control axis number; 4.
- 4. cutting capacity mm
- 2*1.5.
- 5. cutting width mm
- 20-350.
- 6. 3
- Worktable; Dimensions mm; 260*260.
- 7. max loading weight kg
- 200.
- 8. 4
- Spindle; Spindle speed(Infinitely variable speeds) rpm; 50-1500.
- 9. spindle power kw
- 7.5 / 11.
- 10. cutting diameter mm
- 100.
- 11. 5
- X / Y / Z axis; X/Y/Z axis motor power kw; 1.8/1.8/1.8.
- 12. x/y/z max feed speed mm/min
- 10000/10000/8000.
- 13. 6
- Accuracy; Squareness mm/300mm; 0.02.
- 14. accuracy for dimension mm/300mm
- 0.02.
- 15. 7
- Tank capacity; LHydraulic oil tank L; 50.
- 16. llubrication oil tank l
- 3.
- 17. 8
- Power; Power; AC380V/220 40KVA.
- 18. 9
- Weight and dimensions; Machine net weight kg; 5500.
- 19. machine area mm
- 2700*2700.
- Category
- Milling Machines in China
- Subcategory
- Machine tools
- Subcategory 2
- Manufacturing & processing machinery
- Listing ID
- 83497455
Description
GooDa research and development, GooDa "running fast" CNC double-head milling machine TH-350NCG,
Processing range: 20-350mm, spindle motor 2*7.5/11kw, cutter head diameter: 100mm,
Feed speed: 8000~10000mm/min, spindle speed: 50~1500rpm/min, batch processing is possible, milling instead of grinding.
Recently, the new CNC double-head milling machine - the running fast series has been successfully launched. Compared with ordinary double-head milling machines, CNC double-head milling machines have higher processing quality, precision and processing efficiency, and the fool-like operation is more convenient and simple, and the professional requirements for employees will also be reduced, thus saving a lot of labor costs.
CNC double-head milling machine - running fast series, is a popular CNC machine tool that sells well in the metal six-sided processing industry.
