Tya-2000 Compression Testing Machine with Digital Display in Hebei, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Max diameter of workpiece
- <500mm
- Mass scope of workpiece
- 20kg
- Weight
- 500-1000Kg
- Power source
- AC220V
- Oil cylinder position
- Inside
- Product name
- Compression Testing Name
- Standard
- ASTM BS GB
- Test force measuring range
- 4%-100%Fs
- The relative error
- ≤indicating Value±1%
- Power
- 220V/50Hz
- Piston stroke
- 50/100 mm
- Upper/lower pressure plates size
- 240mm*240mm
- Compression space
- 370mm
- Printer
- Thermal Micro Printer
- Printer paper size
- 57mm
- Loading accuracy
- ≦+/-1%
- Testing space regulating way
- Manual Screw Adjust
- Range of test force
- 10%-100% Fs
- Transport package
- Wooden Case
- Specification
- 900mm*500mm*1250mm
- Hs code
- 90248000
- Subcategory
- Test machine
- Subcategory 2
- Test instrument
- Subcategory 3
- Instruments & meters
- Subcategory 4
- Compression testing machine
- Listing ID
- 82094285
Description

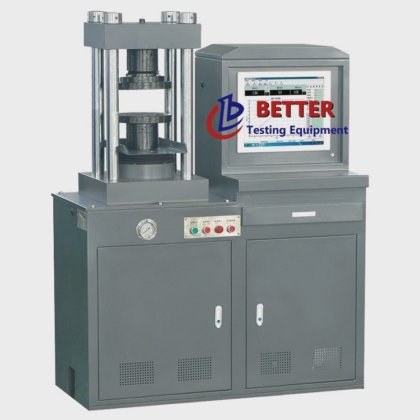

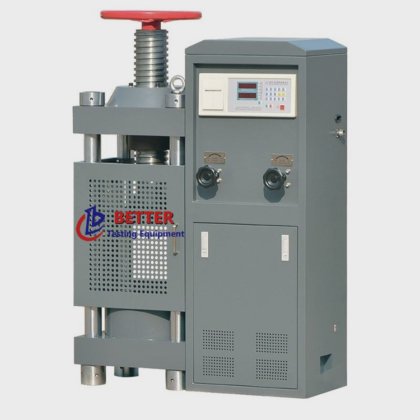

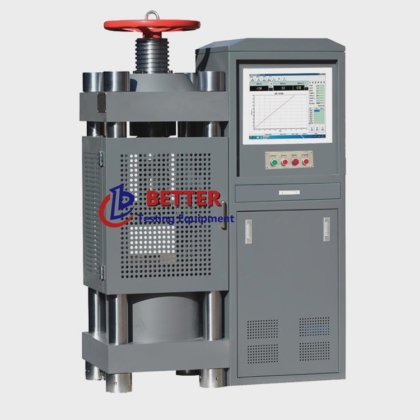

TYA-2000 Compression Testing Machine with Digital Display
DYE-2000 electro-hydraulic Compression Testing Machine is driven by hydraulic power source, and uses intelligent measurement and control instrument to collect and deal with experimental data. It consists of four parts: test host, oil source (hydraulic power source), measurement and control system and test apparatus, and the accuracy of the test machine is superior to 1.
DYE-2000 type electrohydraulic Compression Testing Machine can meet the standard test requirements for bricks, concrete, cement and other materials. Manual loading, digital display of loading and loading speed value. The test machine is one of the main oil source structure of the main engine. It is suitable for the compression test of cement and concrete. With appropriate fixture and measuring device, it can meet the splitting test, bending test and static pressure modulus test of concrete.
