Electric Automatic Cbr Loading Tester Digital Cbr Tester Load Ratio Tester for Soil Testing in Hebei, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Max diameter of workpiece
- <500mm
- Mass scope of workpiece
- <900kg
- Maxcapacity
- >1000KN
- Accuracy grade
- 1
- Load way
- Mechanical Load
- Loading method
- Manual
- Display
- Digital
- Control
- Manual Control
- Weight
- 0-100Kg
- Power source
- AC220V
- Oil cylinder position
- No Oil Pump
- Product name

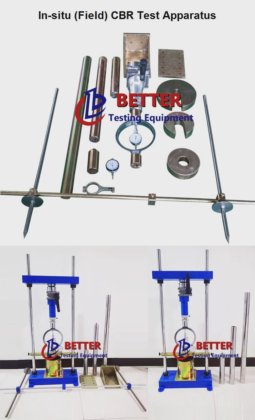

- in-Situ or Field Cbr Test Apparatus for Soil Beari
- Load capacity
- 0-50kn
- Loading speed
- 1mm/1.27mm/2mm
- Transport package
- Wooden Case
- Specification
- other
- Subcategory
- Test machine
- Subcategory 2
- Test instrument
- Subcategory 3
- Instruments & meters
- Listing ID
- 82090516
Description
Automatic CBR Test Machine for california bearing ratio 50 kN LCD touch screen
High quality california bearing ratio cbr tester
is suitable for various soil and mixture (soil particle size is less than 40 mm) within the prescribed test tube die bearing ratio after compaction test, to determine the design of pavement, pavement base and subbase, carrying capacity of the subgrade material layer, is one of the geotechnical test will match the instrument. Instrument by the host, measure ring and injection rod, plant board, dial indicator, expand flow measurement devices, etc. Instrument has small volume, the output is big, easy to operate, etc.
1.CBR tester is suitable for all kinds of soil and mixture (soil with particle size less than 40mm) to carry out bearing ratio test after compaction in the specified test cylinder mold, so as to determine the bearing capacity of the designed pavement, pavement base, subbase and subgrade material layer.
