Hydraulic Mobile Container Loading Dock Ramp in Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Application
- Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift mechanism
- Hydraulic Cylinder
- Carrying capacity
- Weight Level
- Moves
- Moving
- Driven type
- Hydraulic
- Running mode
- Moving
- Feature
- Explosion-Proof, Insulating
- Certification
- CE, ISO 9001
- Load capacity
- 12t
- Max height
- 1700mm
- Min height
- 1100mm
- After-sales service
- Free Parts
- Customized service
- Yes
- Weight
- 2600kg
- Control
- Manual or Electric
- Customize service
- Yes
- Transport package
- Nude
- Specification
- 11800*2120*1100
- Hs code
- 8479899990
- Category
- Material Handlers in China
- Subcategory
- Lifting table
- Subcategory 2
- Lifting equipment
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 81935378
Description
Product Description

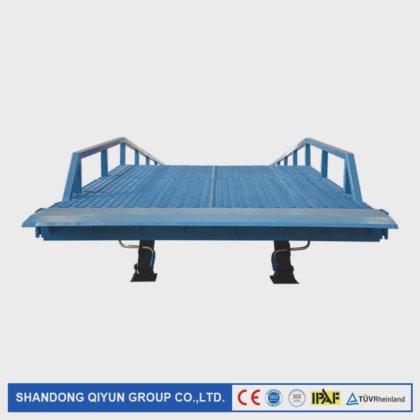

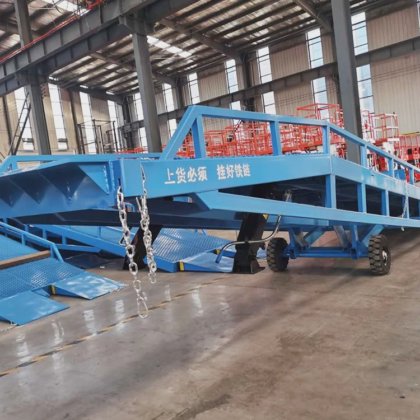

Mobile Yard Ramp
Yard ramp, also called mobile yard ramp or container ramp, is a movable metal ramp for loading and unloading of shipping containers and vehicle trailers, without the need for permanent docking bays. A yard ramp is placed at the back of a vehicle to provide access for forklifts to ascend the ramp, quickly and safely into the container or truck body.
Mobile loading ramp is used for almost all types of transport - from light commercial vehicles to trucks and wagons. Containers, trucks and trailers are typically loaded / unloaded from the rear by reversing the vehicle up against a raised concrete loading bay, the cargo is then moved using counterbalanced forklift trucks. The loading bay is designed to be at approximately the height of the vehicle with a leveling device to accommodate any height differences. There are however many situations where it is not possible to utilize a permanent loading bay.
$4,200 USD
