CT Analyzer Current Transformer Potential Transformer CT PT Tester in Chongqing, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Lifetime Technical Support
- Apparatus
- IEC60044 Electronic Current Transformers Tester
- Application
- IEC 60044 Transformer CT PT Analyzer
- Function
- Electronic Voltage Transformers Tester Analyzer
- Device
- CT PT Transformers Comprehensive Analyzer
- Test standards
- IEC60044-1, IEC60044-6, IEC60044-2, IEC60044-5
- Voltage output
- 0.1~180V (AC)
- Current output
- 0.001~5A(RMS)
- Power output
- 500va
- Maximum knee voltage measurement
- 45kv
- Memory capacity
- >1000 Groups Test Results

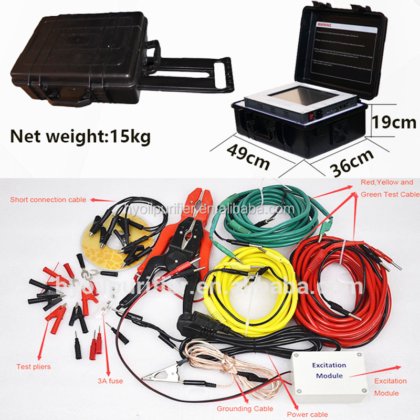

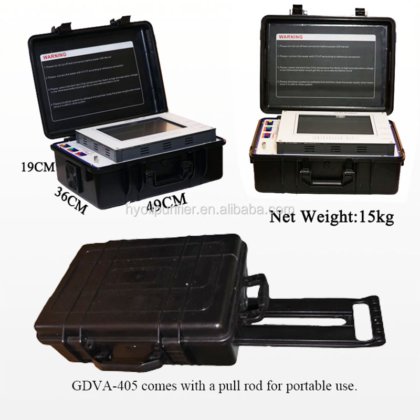

- Transport package
- Wooden Case
- Specification
- ISO, CE
- Hs code
- 9031809090
- Production capacity
- 500PCS/Month
- Category
- Transformers in China
- Subcategory
- Analysis instrument
- Subcategory 2
- Instruments & meters
- Subcategory 3
- Analysis instruments
- Listing ID
- 81589234
Description

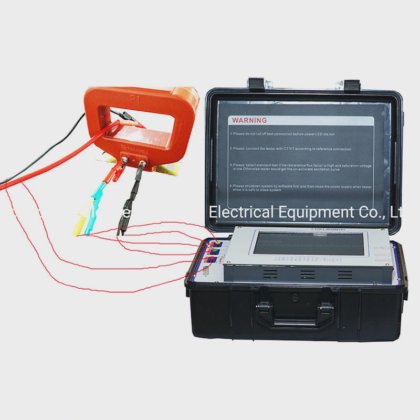

GDVA-405 Ct Analyzer Current Transformer Potential Transformer CT PT Tester
1. Product Name

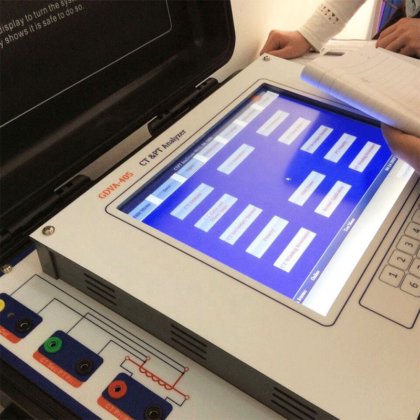

CT PT Analyzer GDVA-405
2. Equipment Description

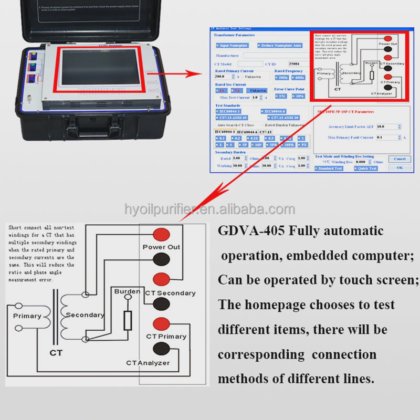

Tests for Current Transformer:
Tests for Potencial Transformer:
1 Excitation curve and parameters test
2 Turns ratio test
3 Ratio and phase error test
4 Polarity mark check
5 Winding resistance measurement
6 Secondary loop burden measurement
7 Error line curve test for protection CT
8 Transient CT parameters test
9 CT nameplate guess
10 Saturation hysteresis loop curve measurement
1 Turns ratio test
2 Ratio error and phase angle error test
3 Polarity test
4 Secondary burden test
5 Winding resistance test
Applications of CT PT Analyzer:
1 CT nameplate check
2 CT parameters check in work burden
