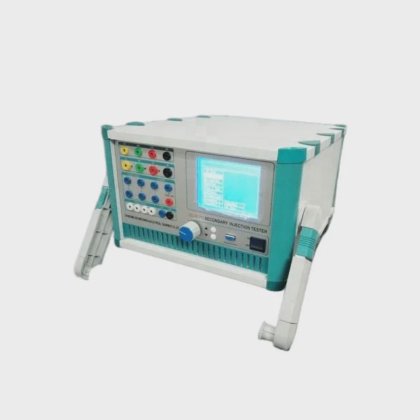

Microcomputer Secondary Current Injection Test Set Three-Phase Relay Protection Tester in Chongqing, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Lifetime Technical Support
- Load way
- Electronic Load
- Loading method
- Static Load
- Display
- Digital
- Control
- Manual Control
- Power source
- AC220V
- Product name
- Secondary Current Injection Test Set
- Input
- 1-20mA,24V
- Output
- DC:220V/0.2A; AC:220V/0.5A
- Time measureing
- 0.1ms~ 9999s
- Power supply
- AC 220V±10%, 50/60Hz
- Ambient temperature
- -10°c - +50°c
- Switch parameters input
- 7 Channels
- Switch parameters output
- 2 Channels
- Output accuracy
- 0.5magnitude
- Phase current output (effective value)
- 0~40A
- Transport package
- Standard Wooden Case
- Specification
- 18KG
- Hs code
- 9031809090
- Production capacity
- 200pieces/Month
- Subcategory
- Test machine
- Subcategory 2
- Test instrument
- Subcategory 3
- Instruments & meters
- Listing ID
- 81578183
Description
Microcomputer Secondary Current Injection Test Set Three-Phase Relay Protection Tester
Introduction:
The instrument is applied to test the relay unit in relay protection system. At the same time it could be considered as a universal three phase AC/DC voltage source or current source.
It is applied to test protection replay based on voltage and current operation.
The main function of the tester include: calibration of voltage and current operation relays, secondary circuit inspection,trip value of circuit breaker test, switch on and off time measurement of circuit breaker and so on.
It's a low cost, simple operation and reliable performance device for secondary circuit test.
Specifications:
Alternating Current(AC) output
1
Output accuracy
0.5magnitude
2
Phase current output (effective value)
0~40A
3
Three parallel phase current output (effective value)
0~120A
4
Phase current value with long time under permission (effective value)
$2,000 USD
