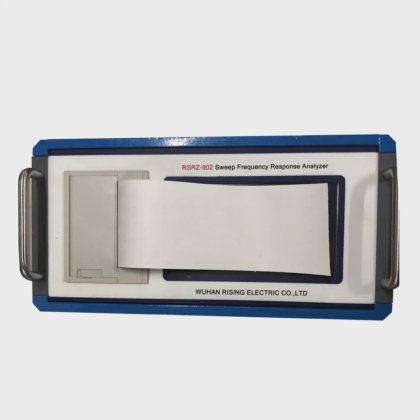

Rsrz-902 Sweep Frequency Response Analyzer with Maximum Range of 2MHz in Hubei, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Material
- Steel
- Protection level
- IP65
- Voltage
- 220V
- Rated load
- <500kg
- Application
- Industrial
- Scan measurement range
- 0~2MHz
- Amplitude measurement range
- (-100dB)~(+20dB)
- Min amplitude measurement accuracy
- ±0.2dB
- Scan frequency accuracy
- 0.01%
- Signal input impedance
- 1mΩ
- Signal output impedance
- 50Ω
- Co-phase repetitive rate
- 99.5%
- Host dimension
- 310X150X150mm
- Host weight
- 4kg
- Power supply
- AC220V±10%,(50±1)Hz
- Working condition
- -10ºC~50ºC,Hr≤90% No Condensation
- Transport package
- Wooden
- Specification
- 310x150x150mm
- Hs code
- 9030401000
- Subcategory
- Instrument box
- Subcategory 2
- Instruments & meters
- Listing ID
- 81325527
Description
Product Description
Product Introduction
RSRZ-902 Sweep Frequency Response Analyzer is based on the measurement of the winding characteristic parameters inside the transformer, the analyzer adopts the world's developed countries sound internal fault frequency response analysis (FRA) method, so as to make an accurate internal transformer fault judgment.
Product Features
1.Adopting advanced technology of DDS,which can correctly detect the breakdown of distortion, swell, shift, tilt, inter-turn short circuit deformation,contacting short circuit inter-phase and so on.
2.Using high-integrated microprocessor and dual-channel AD chip of 16 bits.
3.With two measurement systems of linear scan and sectional scan.
4.Adopting 7-inch touchscreen with adjustable brightness
5.Equipped with micro printer and USB2.0 PC communication interface.
Product
Features
1.Scanning mode(Follow DL / T911 2016 standard)
a.Linear scan measurement range:
10Hz~1MHz resolution:0.5KHz 2001 scan points
