4024CA Spectrum Analyzer in Qingdao, Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Stock number
- Frequency: 10MHzAging Rate: ±0.5ppm/YearInitial Frequency Accuracy: ±0.3ppmTemperature Stability:±0.1ppm(-10～50℃ Comparative to 25℃)
- Frequency range
- 4024CA:9kHz～9GHz Frequency Resolution:1Hz
- Real-time spectrum analysis bandwidth
- 120MHz
- Phase noise
- -115dBc/Hz@100kHz frequency offset@1GHz carrier
- Sweep time
- Range: 10μs～6000s (Zero Span)Accuracy: ±2.00% (Zero Span)
- Frequency readout accuracy
- ±(Frequency Readout× frequency Reference +2%× Span +10%× Resolution Bandwidth)
- Frequency span
- Range: 100Hz～9GHz or 0HzAccuracy: ±2.0%
- Resolution bandwidth
- 1Hz～10MHz (1-3 Times of Stepping), 20MHz
- Video bandwidth
- 1Hz～10MHz (1-3 Times of Stepping), 20MHz
- Ssb phase noise(carrier 1ghz)
- ≤-108dBc/Hz@ Frequency Offset 10kHz≤-110dBc/Hz@ Frequency Offset 100kHz≤-118dBc/Hz@ Frequency Offset 1MHz≤-129dBc/Hz@ Frequency Offset 10MHz
- Displayed average noise level(input port is connected with a 50ω load, 0db input attenuation, average detection, logarithm of video type, rbw normalized to 1hz, tracking source off, 20℃~30℃)
- Pre-amplifier Off:≤-140dBm(2MHz～3GHz)≤-138dBm(3GHz～9GHz) Pre-amplifier On:≤-160dBm(2MHz～3GHz)≤-157dBm(3GHz～9GHz)
- Residual response
- (exceptional frequency: 3.15GHz):Pre-amplifier Off:≤-82dBm（10MHz～9GHz）Pre-amplifier On:≤-95dBm（10MHz～9GHz）
- Second harmonic distortion (0db attenuation, -30dbm input signal)
- 50MHz~2GHz: <-65dBc2GHz~4.5GHz: <-70dBc
- Toi(-15dbm two-tone signal, 100khz span, pre-amplifier off)
- 50MHz~5.2GHz ≥+10dBm5.2GHz~9GHz ≥+12dBm
- Absolute amplitude accuracy(input signal 0dbm~-50dbm, all settings are automatic couplings, 20℃~30℃, 30 minutes of preheating)
- ±1.3dB (10MHz～9GHz)
- Input attenuator
- Attenuation Range: 0dB～30dB, 5dB Steps
- Maximum continuous input
- +27dBm Peak Typical(≥10dB Attenuation)+20dBm Peak Typical(<10dB Attenuation)+10dBm Peak Typical(Pre-amp On)
- Reference level
- Range: -150dBm～+30dBmConversion Uncertainty: ±1.20dB
- Dimension
- 314mm (W)×218mm (H)×91mm (D) (Excluding Handle, Stand)338mm(W)×218mm (H)×100mm (D) (Including Handle, Stand)
- Weight
- ≤4.6kg
- Working temperature
- -10℃～+50℃ (the battery operation temperature is 0℃～+45℃)
- Storage temperature
- -40℃～+70℃ (the battery storage temperature is -20℃～+60℃)
- Electromagnetic compatibility
- Conforms to GJB3947A-2009 3.9.1 Requirements
- Power supply
- AC power adapter: input 100 to 240VAC, 50/60Hz Output 15VDC, 4ALithium-ion battery: 10.8V
- Battery operation time
- 2h (typical)
- Power consumption
- ≤40W
- Test interface
- RF input:Type-N Connector（female）
- Other interfaces
- 10MHz Reference Input/Output: BNC (female) ConnectorExternal Triggering Input: BNC (female) ConnectorIF Output: BNC (female) ConnectorGPS Antenna Input: BNC (female) Connector
- Category
- Signal Analyzers in China
- Subcategory
- Signal and spectrum analyzer
- Listing ID
- 79681789
Description

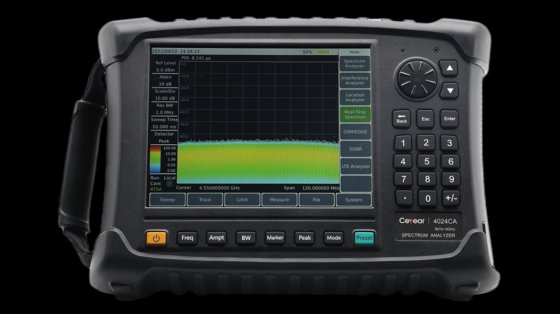

The 4024CA spectrum analyzer is a broadband handheld real-time spectrum analyzer designed for field testing. The maximum real-time analysis bandwidth reaches 120MHz. It has real-time spectrum analysis, 5G NR demodulation analysis, LTE FDD/TDD demodulation analysis, GSM/ EDGE demodulation analysis, directional analysis and other measurement function modes, as well as field strength measurement, channel power, occupied bandwidth, adjacent channel power, audio demodulation, harmonic distortion, spectral emission mask/spurious emission mask, indoor/outdoor map measurement It adopts 8.4-inch large-screen LCD and capacitive touch screen integrated design to facilitate user operation. The structure adopts a handheld chassis, which is small in size, light in weight, flexible in power supply, easy to maneuver, and is extremely suitable for on-site use.
