Ewencast Continuous Casting Machine, Model Micro Caster in Pawtucket, RI, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Category
- Machine Tools equipment in USA
- Subcategory
- Process engineering equipment
- Subcategory 2
- Cnc, metalworking & manufacturing
- Listing ID
- 79282759
Description
Gold Machinery Group
-----------------------------------------------------------------------------------------
We are pleased to offer you...

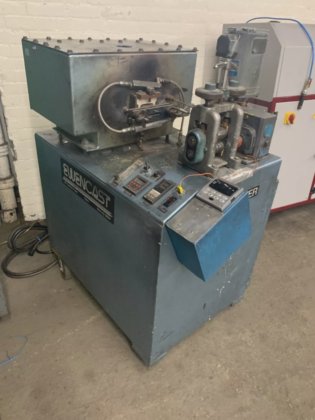

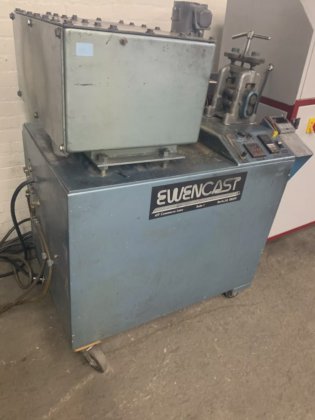

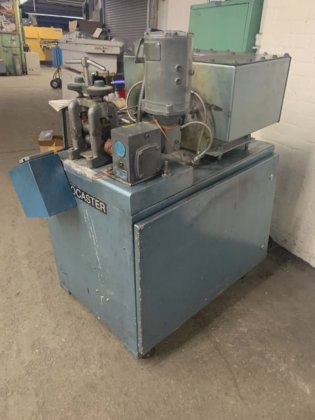

Ewencast Continuous Casting Machine,
Model Micro Caster
Our Inventory Number:
5987-180
Technical Specifications:
220V/1PH/60HZ
Amps 25
S/N 1009
Liquid metal capacity: 10 kgs. Gold
Casting sizes:
up to 2" x 1/4" thick strip
one rod up to 1/4" diameter

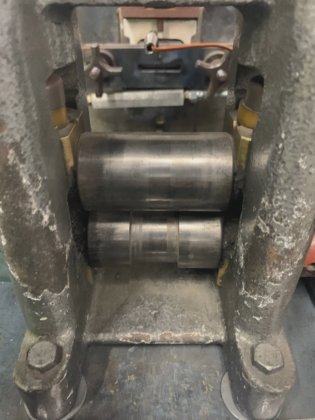

Withdrawal units: (2) 4" rollers, positive drive
Heating time: operating temperature reached
between 45 - 90 minutes depending on alloy
Casting time: example
2" x 1/8" strip at casting speed of 8"/minute
would produce 10 kgs. In approximately 15 minutes
Daily output:
Strip up to 30 kgs.
Rod up to 16 kgs.
Part changes:
dies: 10 minutes(at operating temperature)
crucible: 1 hour if caster is hot
elements: 20 minutes(at operating temperature)
Dimensions: 30" x 40"
Estimated weight: 700 lbs.

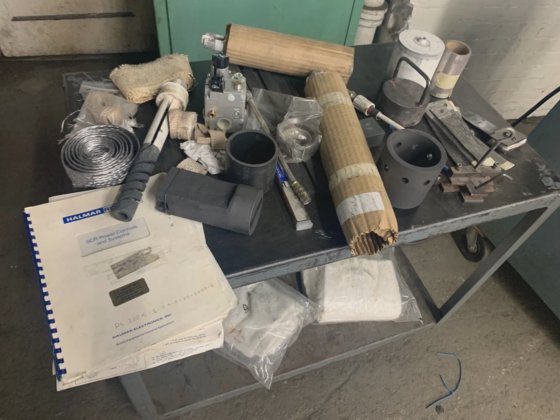

Equipped With:
Factory cabinet stand
Additional heating elements
SCR Power systems / manual
Find more
$11,900 USD
