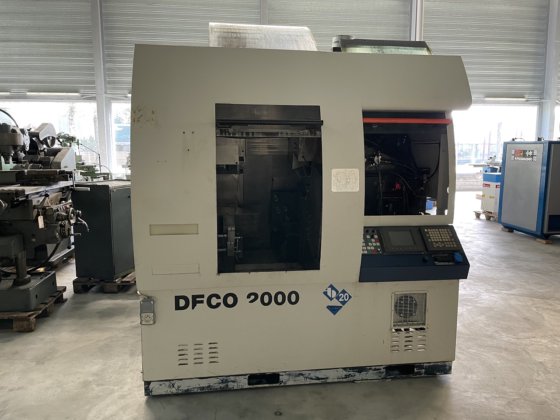

CNC AUTOMATIC LATHE TORNOS DECO 20 in Biel/Bienne, Bern, Switzerland
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- 2220002
- Tag
- Machines
- Category
- CNC Lathes in Switzerland
- Subcategory
- Cnc-lathe
- Subcategory 2
- Turning-swiss turning
- Subcategory 3
- Cnc-lathe, turning-swiss turning
- Listing ID
- 76389554
Description
Manufacturing origin Switzerland
Netweight 3000 kg
Dimensions 215x155x215 cm
Custom position 8458.11 20
Headstock (axis Z1) (+C optional)
Max bar capacity dia. 20 mm
Max workpiece length according to guide bush type 200 mm
Rotation speed of the programmable spindle 0-12000 rpm
Positioned stopping and indexing increment 0,1 degree
Max spindle power 3,7 (5,5) kW
Guide-bush holder (X1/Y1) (X2/Y2)
Number of tools on the guide bush (2 slides ; 2 x 2 axis) 2 x 5
Cross section of tools 16×16 mm
Number of cross drilling/milling attachments on guide bush 4
Programmable rotation speeds 0-8000 rpm
End attachment (X3/Y3)
Max number of end tools 4
Programmable rotation speed 0-6000 rpm
Opposite spindle and counter operation (X4/Z4) (+C axis optional)
Clamping capacity max diameter 20 mm
Programmable rotation speed 0-12000 rpm
Positioned stopping and indexing increment 0,1 degree
Max number of counter – operations 7
Number of stationary or revolving spindles 7
