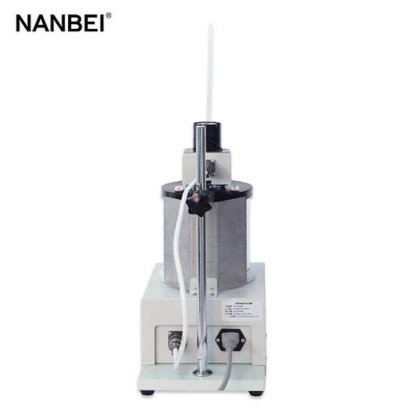

Nanbei Dropping Point Tester in Zhengzhou, Henan, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Year
- 2022
- Oil bath
- 600 ml beaker.
- Stirring motor
- 60 RPM
- Ambient temperature
- -10℃～+40℃
- Relative humidity
- ≤85%
- Maximum power consumption
- 900 W
- Dimensions
- 350mm×180mm×410mm
- Heater
- Tubular. Power 800 watts
- Subcategory
- Test, lab, medical equipment
- Subcategory 2
- General analytical equipment
- Listing ID
- 75201914
Description
This Dropping Point Tester is designed and manufactured in accordance with the National Standard of the People's Republic of China GB/T 4929 Determination of Dropping Point of Lubricating Grease and ASTM D566 Standard Test Method for Dropping Point of Lubricating Grease.
Oil cup: Chrome-plated brass material. Its inner diameter is about 9.92 mm, and the diameter of the drip hole is 2.8 mm. The height of the cup is about 12mm.
Test Tube: A rimmed test tube made of Pyrex. Its inner diameter is 11.1mm to 12.7mm. There are three indents approximately 19mm from the bottom, equally spaced around the perimeter. These indentations are used to support the grease cup.
Thermometer: -5℃～300℃, the scale value is 1℃. Its overall length is 390mm and the immersion depth is approximately 76mm.
