2025 LOCATELLI ARIETE 3 AUTOMATIC TURNING LATHE [LC-300058] in Italy
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Year
- 2025
- Stock number
- LC-300058
- Comments
- LOCATELLI the Pioneer of Automatic Hydraulic Copy Lathe.
- Elect./voltage
- 230/460/575 V, 60 Cy, 3 Ph
- Current status
- Brand New
- Appr. repl. cost
- 0
- Machine type
- AUTOMATIC TURNING LATHE
- Category
- Lathes in Italy
- Subcategory
- Lathes & carvers
- Subcategory 2
- Automatic turning lathe
- Listing ID
- 74342741
Description

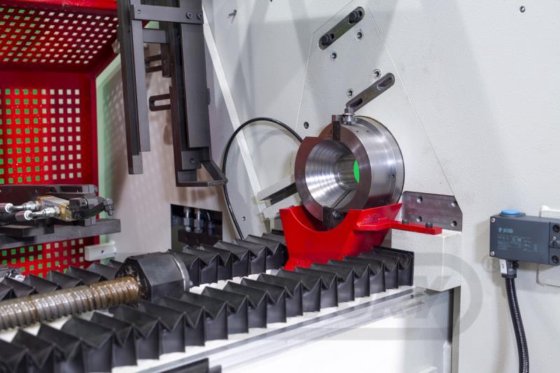

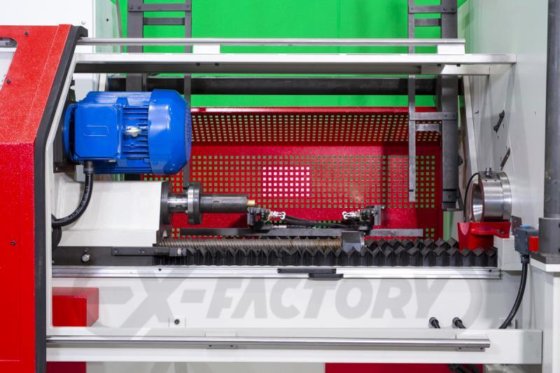

LOCATELLI ARIETE 3 Automatic Hydraulic Lathe with Chuck Loader
Features: Hydraulically powered centering collet for the production of small turned wooden parts using square section stock (stock length capacity in loader is 9.8" - 39.3" (250 - 1000 mm). The feed is controlled by a servo.
-- Dimensional Capacity: Max. length of the workpiece is 4-3/4" (120 mm) with end boring and 5-15/16" (150 mm) without end boring. Max. turning diameter is 3-1/8" (80 mm).

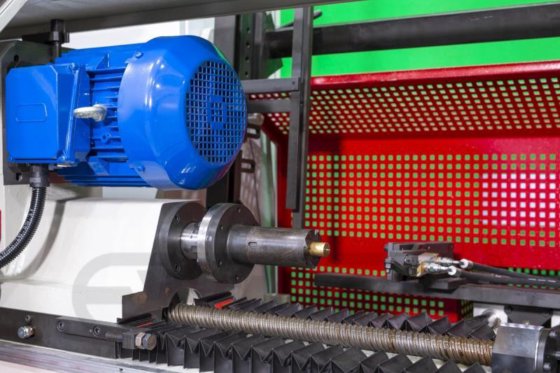

-- Drive Speeds: Dual speed self-braking mandrel, 4.5/5.5 HP motor with (4) working speeds of 1,300 - 1,850 - 2,600 & 3,700 RPM. 3 HP - 1,800 RPM Hydraulic pump unit.
-- Equipped with: Tool-holder group for pendulum rough turning, finishing tool holder group, tailstock for drilling and/or milling, and parting tool holder assembly with Parting tool 20 x 3 x 3 x 150 mm.
(1) Steady Rest with bearing. Clamping device for centering on the feeder.
